Drager x am 8000 portable multi gas detector
Drager x am 8000 portable multi gas detector
Dräger

Drager X am 8000 Basic Diffusion

SKU: 8325865
£1,493.94 GBP
Contact ISS
Need help or have a query? Ask ISS.
Contact us:
e: sales@isscomplete
t:+44 28 37 539 950

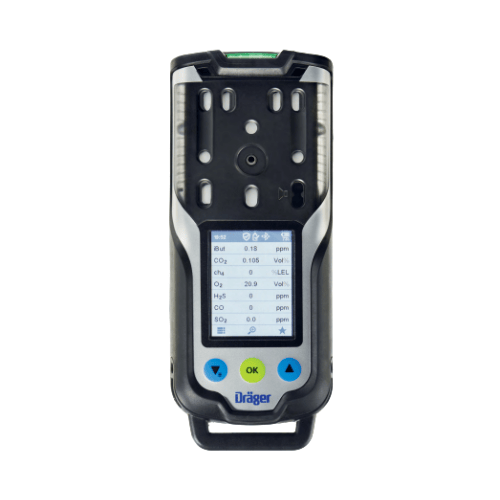

This Dräger X-am 8000 (Basic Diffusion)

Clearance measurement was never this easy and convenient: the Drager X-am 8000 measures up to seven toxic as well as flammable gases, vapours and oxygen all at once, either in pump or diffusion mode. Innovative signalling design and handy assistant functions ensure complete safety throughout the process.

This product includes;

  • Li-ion battery
  • Shoulder strap
  • Manufacturer certificate

Please Note: This product does not include a pump, sensors, an inductive power unit, a power supply.

    Contact our sales team for information on the complete sensor combination options.

    Features:
    • Ergonomic mobile phone design
    • Flexible sensor exchange
    • Durable Sensor Technology
    • Robust and watertight
    • External pump available for checks into confined spaces e.g. tanks, shafts, etc. (Not Included)
    • Area monitoring available through X-zone 5500 (Not Included)
    • Optimum solutions for function or bump tests and calibrations
    • Flexible power supply
    **Please Note: As standard, this product requires calibration and necessary sensor warm-up prior to dispatch. As such, delivery times may vary, and next day delivery may not be guaranteed.
    >> With reference to the standard BS EN 60079-29-1, it is strongly recommended that this portable gas detection device is regularly functionally (Bump) tested.

    All information is provided by the manufacturer and, while every effort is made to keep it current, we recommend confirming that details suit your needs.

    As a Drager Sales Channel partner, ISS can offer a range of support services: incl. training, calibrations and services (we are a Dräger Authorised Service Partner (ASP).

    ISS are a leading provider of gas detection and calibration services in Ireland and the UK.

    Sensor information below:

    See the datasheet below for more information.

    Sensors Measuring range Resolution Part No.
    Cat‑Ex 125 PR 0–100 % LEL 1 % LEL 6812950
    0-100 vol% CH4
    Cat‑Ex 125 PR Gas 0–100 % LEL 1 % LEL 6813080
    0-100 vol% CH4
    0-50,000 ppm CH4L 10ppm, Detection limit 50ppm
    CatEx H2 100 0–100 % LEL 2 % LEL (10 ppm for gas h2L for leak search) 3729050
    0–100 vol% 1 vol%
    Dual IR Ex / CO2 ES 0–100 % LEL 1 % LEL 6851880
    0–100 vol% Methane, Propane, Ethene, n‑Butane 0.1 vol% CH4
    0-5 vol% CO2 0.01 vol% CO2 or 50 ppm CO2
    Dual IR Ex / CO2 HC 0–100 % LEL 1 % LEL 6800276
    0–100 vol% Methane, Propane, Ethene, n‑Butane 0.1 vol% CH4
    0-100 vol% CO2 0.1 vol%
    IR Ex ES 0–100 % LEL 1 % LEL 6851881
    0–100 vol% Methane, Propane, Ethene, n‑Butane 0.1 vol% CH4
    IR CO2 ES 0-5 vol% CO2 0.01 vol% CO2 or 50 ppm CO2 6851882
    PID LC ppb (10.6 eV) 0.05–10 ppm Isobutene
    0–5 ppm Benzene     		depending on gas value, starting with 10 ppb 6813500
    PID HC (10.6 eV) 0–2,000 ppm Isobutene
    0–1,000 ppm Benzene     		depending on gas value, starting with 0.1 ppm 6813475
    XXS O2 0–25 vol% 0.1 vol% 6810881
    XXS O2 PR 0–30 vol% 0.1 vol% 6800530
    XXS O2 100 0–100 vol% 0.5 vol% 6812385
    XXS O2 / H2S LC 0-25 vol% O2, 100 ppm H2S 0.1 vol% 0.1 ppm 6814137
    XXS CO LC 2 0–2,000 ppm 1 ppm 6813210
    XXS CO HC 0–10,000 ppm 5 ppm 6812010
    XXS CO / H2 compensated 0–2,000 ppm CO 2 ppm 6811950
    XXS H2S LC 0–200 ppm 0.1 ppm 6811525
    XXS H2S HC 0–1,000 ppm 2 ppm 6812015
    XXS CO LC / H2S LC 0–2,000 ppm CO/ 1 ppm CO 6813280
    0-100 ppm H2S 0.1 ppm H2S
    XXS CO LC / O2 0–2,000 ppm CO/ 1 ppm CO 6813275
    0–25 vol% 0.1 vol% O2
    XXS NO 0–200 ppm 0.1 ppm 6811545
    XXS NO2 0–50 ppm 0.1 ppm 6810884
    XXS NO2 LC 0–50 ppm 0.02 ppm 6812600
    XXS SO2 0–100 ppm 0.1 ppm 6810885
    XXS PH3 0–20 ppm 0.01 ppm 6810886
    XXS PH3 HC 0–2,000 ppm 1 ppm 6812020
    XXS HCN 0–50 ppm 0.1 ppm 6810887
    XXS HCN PC 0–50 ppm 0.5 ppm 6813165
    XXS NH3 0–300 ppm 1 ppm 6810888
    XXS CO2 0–5 vol% 0.1 vol% 6810889
    XXS Cl2 0–20 ppm 0.05 ppm 6810890
    XXS H2 0–2,000 ppm 5 ppm 6812370
    XXS H2 HC 0–4 vol% 0.01 vol% 6812025
    XXS OV 0–200 ppm 0.5 ppm 6811530
    XXS OV‑A 0–200 ppm 1 ppm 6811535
    XXS Amine 0–100 ppm 1 ppm 6812545
    XXS Odorant 0–40 ppm 0.5 ppm 6812535
    XXS COCl2 0–10 ppm 0.01 ppm 6812005
    XXS Ozone 0–10 ppm 0.01 ppm 6811540
