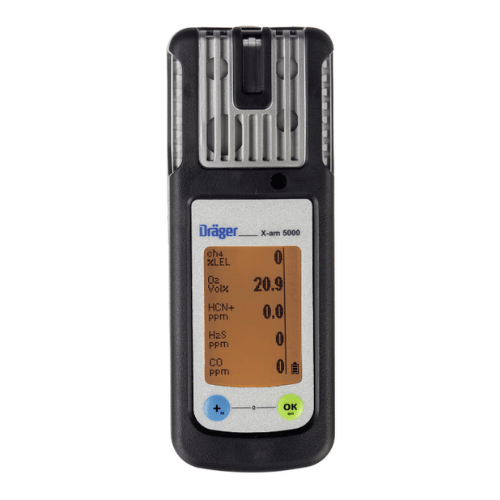

Drager X am 5000 multi gas detector personal monitor with display screen

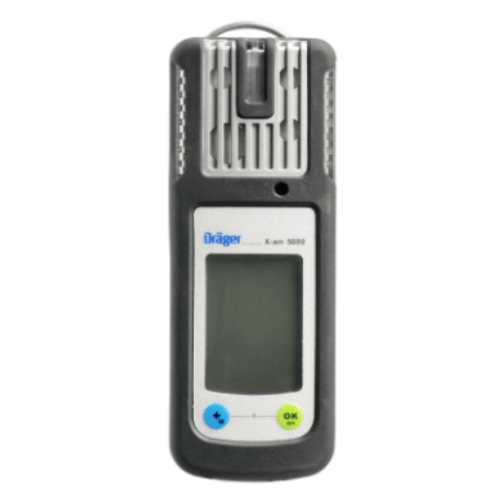

Drager X am 5000 portable multi gas detector personal monitor with display screen
Drager X am 5000 multi gas detector personal monitor with display screen
Drager X am 5000 portable multi gas detector personal monitor with display screen
Dräger

8320000 Drager X am 5000

SKU: 8320000

Configuration Required -Contact ISS

Email +44 28 37539 950

A functional instrument must include up to 4 sensors and a power supply unit (option).

The Drager X am 5000 is a portable multi-gas detector that can detect up to 5 gases including oxygen, combustible gases and vapours, and harmful concentrations of other gases. It is also equipped with durable XXS sensor technology, offering a high level of security and low operational costs.

Dräger X-am 5000 includes: Event- and data logger, manufacturer certificate and calibration certificate. Special calibration for the Cat Ex Sensor and electrochemical sensors available.

Optionally, the following accessories are available: - charging accessories - calibration accessories, Dräger Bump Test Station, calibration system Dräger X-dock - communication and evaluation accessories - external pump, hoses, filter and probes - alarm amplifier Dräger X-zone 5500 - bags and cases

Contact us to discuss your needs and for the best price on this device(s).



Features:

  • Ergonomic design – lightweight design and intuitive menu
  • Flexible sensor change
  • Poison-resistant Ex Sensor – highly resistant against sensor poisons e.g. silicone and hydrogen sulphide. Also has a fast response to explosive gases and combustible organic vapours.
  • Durable sensor technology
  • Robust and watertight – water and dust resistant according to IP 67 standards. Shock-proof sensors. Resistant to electromagnetic interference.
  • External pump available for checks into confined spaces e.g. tanks, shafts, etc. (Not Included)
  • Area monitoring available through X-zone 5500 (Not Included)
  • Flexible power supply – can be used with alkaline batteries or with rechargeable NiMh T4 battery
  • Optimum solutions for function or bump test and calibrations - The automatic test and calibration station Drager X-dock and the Drager Bump Test Station are ideal system extensions that save time and reduce workload. Fresh air, mixed gas and single gas calibrations can be done directly using the Drager X am 5000 menu.



All information is provided by the manufacturer and, while every effort is made to keep it current, we recommend confirming that details suit your needs.

As a Drager Sales Channel partner, ISS can offer a range of support services: incl. training, calibrations and services (we are a Dräger Authorised Service Partner (ASP).

ISS are a leading provider of gas detection and calibration services in Ireland and the UK.

Sensor information below:

See the datasheet below for more information.

Description

 Measuring range Resolution Part No.
CatEx 125 PR 0 – 100 % LEL
0 - 100 Vol.-% CH4		 1 % LEL 1 Vol.‑% 6812950
CatEx 125 PR Gas 0 – 100 % LEL
0 - 100 Vol.-% CH4		 1 % LEL 1 Vol.‑% 6813080
DrägerSensor XXS O2 0 – 25 Vol.‑% 0.1 Vol.‑% 6810881
DrägerSensor XXS O2 100 0 – 100 Vol.% 0.5 Vol.‑% 6812385
DrägerSensor XXS O2 PR 0 ‑ 30 Vol.‑% 0.1 Vol.‑% 6800530
DrägerSensor XXS CO LC 0 – 2,000 ppm 1 ppm 6813210
DrägerSensor XXS CO HC 0 – 10,000 ppm 5 ppm 6812010
DrägerSensor XXS CO / H2 compensated 0 – 2,000 ppm CO 2 ppm 6811950
DrägerSensor XXS H2S LC 0 – 200 ppm 0.1 ppm 6811525
DrägerSensor XXS H2S HC 0 – 1,000 ppm 2 ppm 6812015
DrägerSensor XXS CO LC / H2S LC 0 – 2,000 ppm CO
0 - 200 ppm H2S		 1 ppm CO
0.1 ppm H2S		 6813280
DrägerSensor CO LC / O2 0 – 2,000 ppm CO
0 - 25 Vol.-% O2		 1 ppm CO
0.1 Vol.-% O2		 6813275
DrägerSensor XXS H2S LC / O2 0 – 100 ppm H2S
0 – 25 Vol.‑% O2 		0.1 ppm H2S
0.1 Vol.‑% O2 		6814137
DrägerSensor XXS NO 0 – 200 ppm 0.1 ppm 6811545
DrägerSensor XXS NO2 0 – 50 ppm 0.1 ppm 6810884
DrägerSensor XXS NO2 LC 0 – 50 ppm 0.02 ppm 6812600
DrägerSensor XXS SO2 0 – 100 ppm 0.1 ppm 6810885
DrägerSensor XXS PH3 0 – 20 ppm 0.01 ppm 6810886
DrägerSensor XXS PH3 HC 0 – 2,000 ppm 1 ppm 6812020
DrägerSensor XXS HCN 0 – 50 ppm 0.1 ppm 6810887
DrägerSensor XXS HCN PC 0 – 50 ppm 0.5 ppm 6813165
DrägerSensor XXS NH3 0 – 300 ppm 1 ppm 6810888
DrägerSensor XXS CO2 0 – 5 Vol.‑% 0.1 Vol.‑% 6810889
DrägerSensor XXS Cl2 0 – 20 ppm 0.05 ppm 6810890
DrägerSensor XXS H2 0 – 2,000 ppm 5 ppm 6812370
DrägerSensor XXS H2 HC 0 – 4 Vol.‑% 0.01 Vol.‑% 6812025
DrägerSensor XXS OV 0 – 200 ppm 0.5 ppm 6811530
DrägerSensor XXS OV‑A 0 – 200 ppm 1 ppm 6811535
DrägerSensor XXS Amine 0 – 100 ppm 1 ppm 6812545
DrägerSensor XXS Odorant 0 – 40 ppm 0.5 ppm 6812535
DrägerSensor XXS COCl2 0 – 10 ppm 0.01 ppm 6812005
DrägerSensor XXS Ozone 0 – 10 ppm 0.01 ppm 6811540
