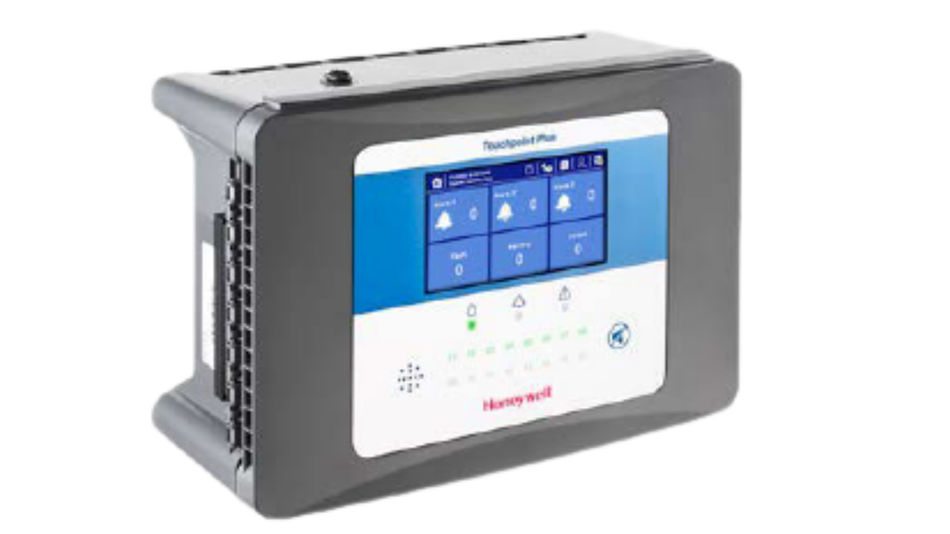

Honeywell Touchpoint Plus Controller Wall-Mount Gas Controllers

Honeywell Touchpoint Plus is a wall-mounted control system that is easily configurable and can support up to eight gas detection channels, with an optional extension unit providing an additional eight channels. It accepts inputs from 2 or 3-wire mA or mV field devices. Clear visibility from a distance is provided by the full-colour traffic light-style status indication.

Touchpoint Plus includes a comprehensive set of outputs as standard including common alarms and dedicated drives for remote audio-visual indicators.

Honeywell Touchpoint Plus Wall-Mount Gas Controller Accessories (5)

Honeywell Touchpoint Plus Wall-Mount Gas Controller Spares (17)

Contact Us

For further information or help on the above products please contact sales@isscomplete.com

Honeywell Touchpoint Plus Controller Wall-Mount Gas Controllers

TPPLBAWA2NNNNNN Honeywell Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 2x mA inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWV2NNNNNN Honeywell Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 2x mV inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWA4NNNNNN Honeywell Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWV4NNNNNN Honeywell Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mV inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWD4NNNNNN Honeywell Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 2x mA and 2x mV inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWA8NNNNNN Honeywell Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWV8NNNNNN Honeywell Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWD8NNNNNN Honeywell Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA and 4x mV inputs, including Master 1, Master 2 and Master Fault.

TPPLBAWA8DNBNNN Honeywell Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, and with battery backup.

TPPLBAWV8DNBNNN Honeywell Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, 24 programmable relays, and with battery backup.

TPPLBAWA8DNNNRN Honeywell Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, with Modbus TCP and Web monitoring

TPPLBAWD8SNBRNN Honeywell Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA and 4x mV inputs, 12 programmable relays, with battery backup and with Modbus RTU.

TPPLBAWA8D8NNNN Honeywell Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, and with 8x repeated mA outputs

TPPLBAWV8D8NNNN Honeywell Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, 24 programmable relays, and with 8x repeated mA outputs

TPPLBAWD8D8NNNN Honeywell Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA and 4x mV inputs, 24 programmable relays, and with 8x repeated mA outputs.

TPPLBAWA8D8BNNN Honeywell Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, 8x repeated mA outputs, and with battery backup.

TPPLBAWV8D8BNNN Honeywell Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, 24 programmable relays, 8x repeated mA outputs, and with battery backup.

TPPLEAWA8SNNNNN Honeywell Touchpoint Plus expansion unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, and with 12 programmable relays.
