Full comfort harness, compliant with the requirements of EN 137:2006 (Type 2). Ergonomic fixed height and adjustable carrying system allows 3-point back plate height adjustment and incorporates swivelling and sliding waist belt assembly.
- Carbon composite low weight and low profile space frame
back plate
- breathing hoses integrated into the back plate
- Antistatic and chemical resistant properties
- moulded integrated handles for easy carrying
- Reflective backplate and waist / shoulder comfort pads
- photo-luminescent back lit transmitting gauge
- quick-release shoulder harness and waist belt
- quick-release pneumatics
- Nomex cylinder band with “Camlock” fastener
- advanced wear-resistant and flame retardant shoulder and waist
belt padding
- Aramid harness webbing material
- pull forward waist adjustment

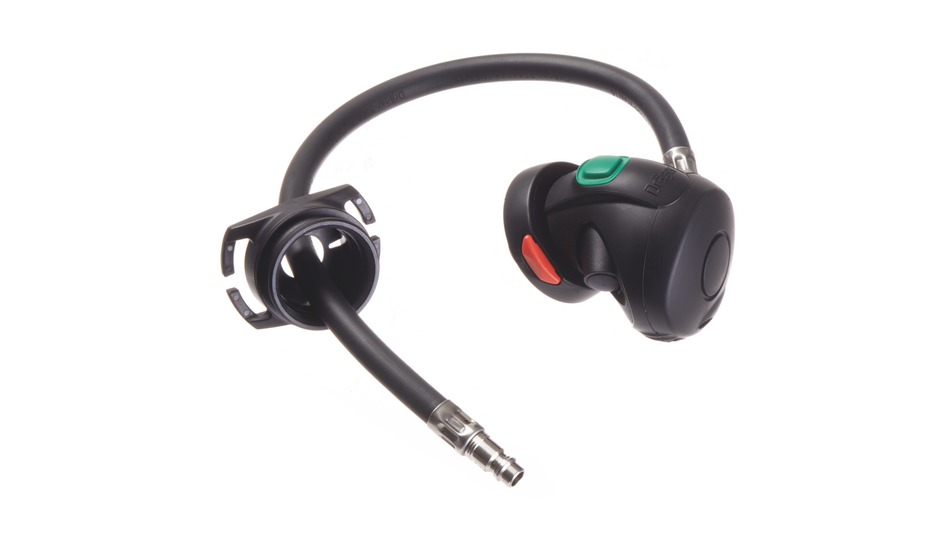

- quick release LDV connection
- Monitoring with Tx Gauge
Cylinder connection: standard G5/8” thread or Dräger cylinder Quick Connect Cylinder configuration: single cylinder strap (SCS) for single cylinder configurations and universal cylinder strap (TCS) for single and twin cylinder configurations. Bodyguard 1500 needs to be ordered separately.
