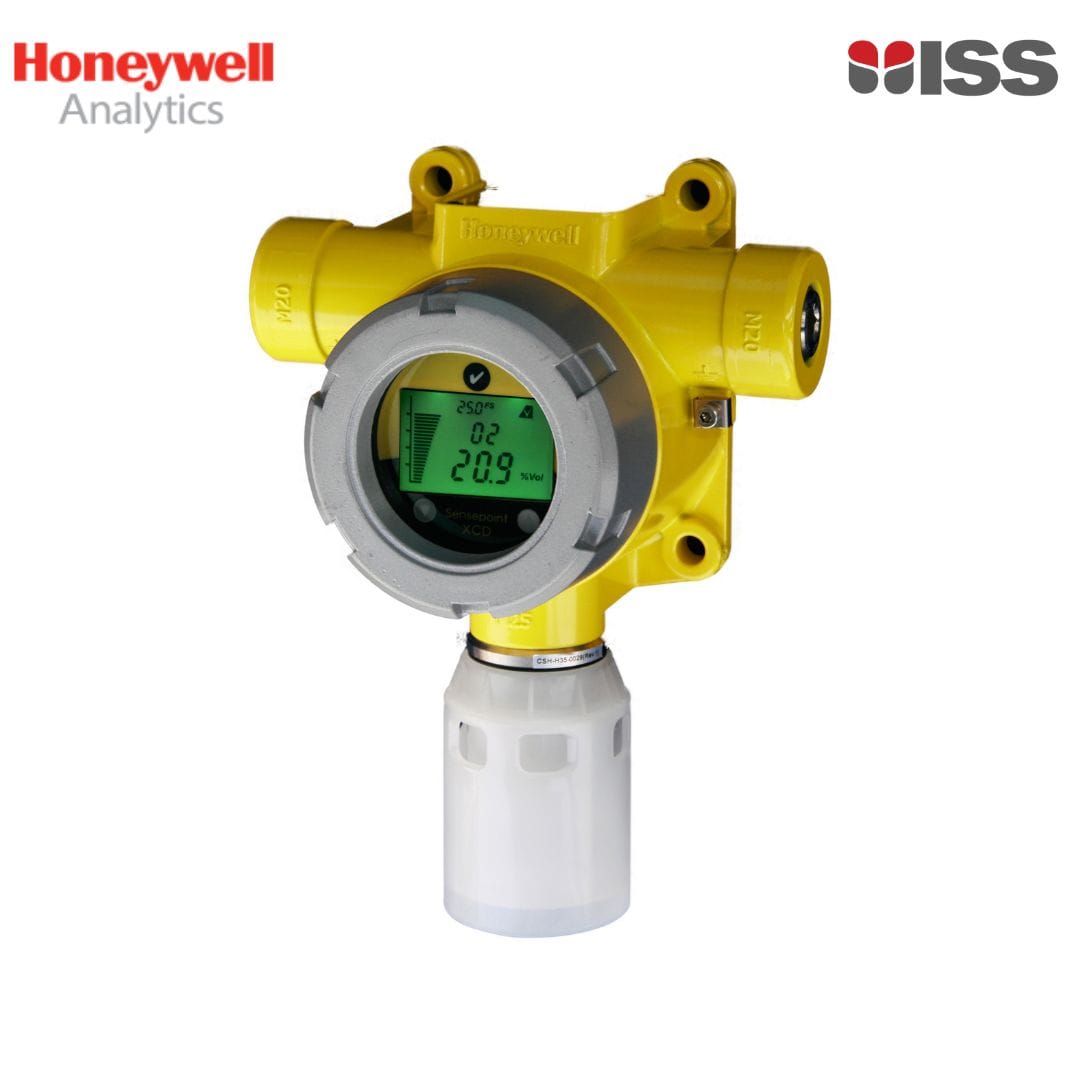

SPXCDASMNXM Honeywell Sensepoint XCD Gas Detector,4 to 20 mA | Modbus output,ATEX/IECEx/Asian approvals, M20, nitrogen dioxide

Honeywell Sensepoint XCD Gas Detector. Contains 4 to 20 mA and Modbus output, and also 2 x M20 entries. Includes nitrogen dioxide (NO2) EC sensor cartridge 0 to 10ppm, user selectable FSD between 10 and 50ppm (5 ppm resolution). Includes nylon weather protection.

Standard: ATEX/IECEx/Asian approvals

Material: Painted 316 Stainless Steel

P/N: SPXCDASMNXM

The standard XCD is an Ex d-certified gas detector designed for Zone 1 hazardous areas, offered in three variants: flammable, oxygen, and toxic gas detection. It comes equipped with a stainless steel sensor cartridge pre-installed, fully tested, and calibrated for immediate installation. Replacement sensor cartridges are also available. The unit’s configuration and control are managed via a magnet, eliminating the need to open the enclosure. A tri-colour backlit display provides clear, real-time status updates, ensuring quick and easy monitoring.

The XCD features a catalytic sensor capable of detecting flammable gases within a 0 to 100% LEL range. Infrared (IR) sensor variants detect methane and propane with cross-sensitivity to ethylene and butane, and carbon dioxide across the same measurement scope. Both sensor types work alongside the flammable gas transmitter. Additionally, electrochemical (EC) sensors are available to monitor oxygen and toxic gases, including carbon monoxide, hydrogen sulphide, nitrogen dioxide, and hydrogen, offering a broad spectrum of gas detection options.

Each detector comes with the following:

• a pre-fitted sensor
• nylon weather protection
• stainless steel blanking plug
• magnetic wand
• hex keys

All transmitters are also available with a Modbus interface as an option.
