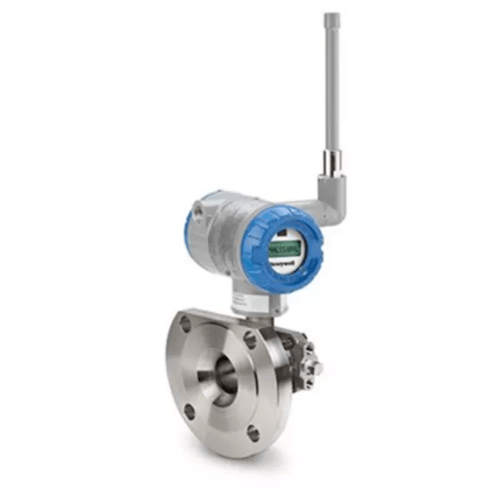

Honeywell SmartLine Wireless Flange Mount
Configuration Required -Contact ISS
SmartLine® Wireless Flange Mount Pressure Transmitters are available in two variants: the high-performance Series 800 and the high-value Series 700.
Flange-mount pressure transmitters allow installation onto a tank flange and are offered with a variety of tank connections. Typical applications include high-accuracy level measurement in pressurised and unpressurised vessels in the chemical and hydrocarbon industries.
The SmartLine Wireless Flange Mount Pressure Transmitters cover the following operating range:
| Series | Models | Operating Range |
| 700 | STFW724 | 0-400 in H2O (0-1000 mbar) |
| 800 | STFW828 | 0-400 in H2O (0-1000 mbar) |
&nbs
How does it work?
Honeywell’s approach begins with the very capable and versatile OneWireless Network. Honeywell's network is the industry’s first multiprotocol network that supports both ISA100 Wireless and WirelessHART protocols.
Devices using either protocol operate together and in real time. Furthermore, the OneWireless Network can connect Wi-Fi devices and wired MODBUS devices, bridging legacy systems with modern technology.
Honeywell developed the OneWireless Network to enable customers to deploy a single, high-performance network for process monitoring, with the flexibility to expand and incorporate more critical applications, such as control when needed. OneWireless Network's built-in capabilities allow for control applications, for example providing a scalable wireless infrastructure while ensuring deterministic communication.
Honeywell’s SmartLine Wireless Pressure builds upon the previous generation transmitter offering by offering a 0.5-second publication rate option and a new anti-aliasing filter option. These transmitters are ready for control. Honeywell customers currently utilising XYR™ 6000 wireless transmitters can also painlessly add SmartLine Wireless Pressure to their networks.
What Problems Does It Solve?
Wireless field devices reduce the obstacles to project ROI justification and accelerate the installation timeline, enabling faster operational readiness.
Industrial organisations seeking operational improvements are re-evaluating previously hard-to-justify or difficult-to-access areas. Wireless field devices address these challenges by lowering costs and offering an alternative solution for instrumentation deployment.
When evaluating industrial wireless offerings, SmartLine Wireless Pressure product offers significant performance and cost advantages for both current and new users of industrial wireless technology by:
- Providing a robust wireless network with increased power, faster update rates, reduced infrastructure requirements and wider deployment options
- Incorporating additional noise reduction to improve performance in control applications
- Simplifying installation and commissioning
- Utilising long-life commodity batteries
- Offering the ability to use 24-volt DC power, optionally, in the field
- Implementing proven, industry-best cybersecurity
