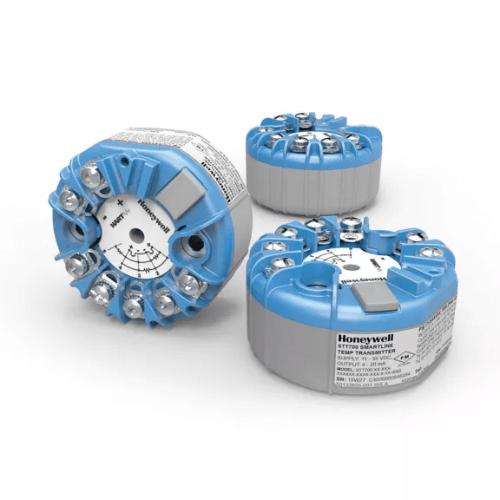

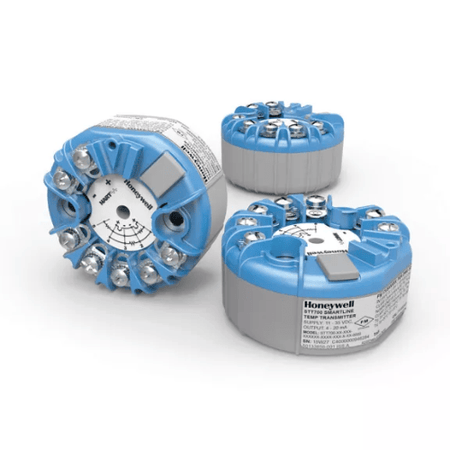

Honeywell SmartLine STT700
Configuration Required -Contact ISS
The STT700 serves as a direct substitute for the STT250, making it ideal for most process applications, including control and safety functions, while offering outstanding performance with minimal installation expenses.
SmartLine STT700 Temperature Transmitter offers the following features:
- SmartLine platform features including SmartLine Connection Advantage when used with Experion
- Single input supporting up to 4-wire RTD sensor connection
- Dual input option supporting up to two (2) 3-wire RTD sensor connections
- Digital accuracy up to 0.15°C for RTD
- Callendar-Van Dusen sensor constants input
- HART7 communications
- DE communications

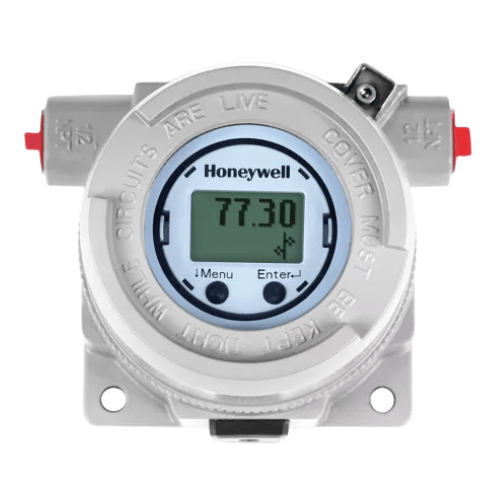

- Field housing, head mount, panel mount and DIN rail mounting options
- Transmitter and sensor diagnostics
- FM / CSA / ATEX / IEC Ex approvals
- Full compliance with SIL 2 / 3 requirement
- Up to a 4-year warranty
