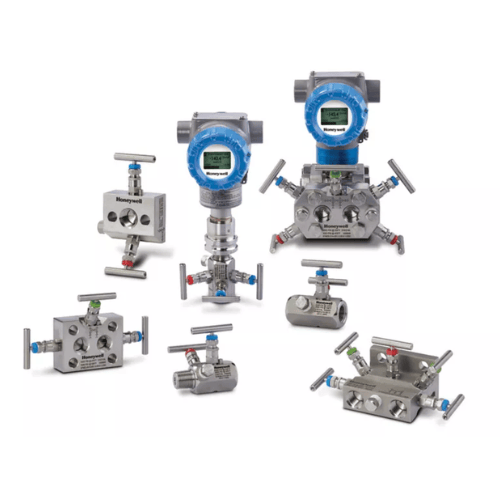

Honeywell SmartLine Manifolds

SmartLine manifolds feature integrated safety systems and undergo factory leak testing and certification to guarantee secure, reliable, and efficient process operation and maintenance.

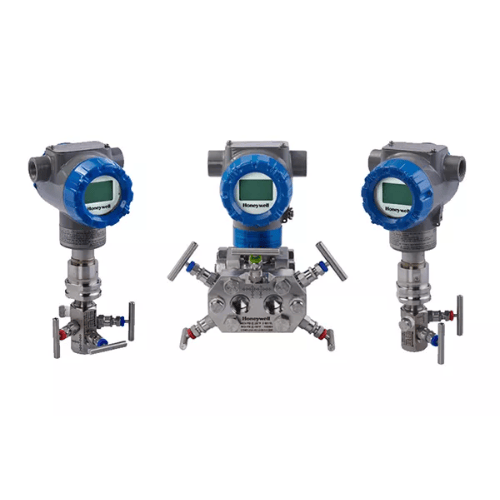

Offered as individual components or as pre-assembled, factory-tested units paired with SmartLine Pressure Transmitters, these manifolds reduce total ownership costs for users, OEMs, and EPC contractors. Available in multiple designs, materials, pressure, and temperature ratings, with global certifications, they cater to diverse application requirements.

SmartLine Manifolds are available in a variety of designs, material of construction, process pressure and temperature specifications and global certifications to suit every application need.

•  Block and bleed, 2, 3 and 5-valve manifold configurations
• Wide and compact body styles
• Traditional and wafer style variants
• Body material – SS316/ SS316L/ Monel / Hastelloy / Inconel / Carbon Steel and more…
• Packing material – PTFE/ graphite
• Process temperature – up to 450 °C
• Process pressure – 6000 psi / 10000 psi
• Manufacturing standards / compliance – ASME/ ISO/ MSS/ NACE/ NORSOK/ EN 10204 3.1

How Does It Work?
SmartLine Manifolds are designed to integrate smoothly with the SmartLine series of pressure transmitters, and interface with the process to ensure safe, dependable, and efficient operation and maintenance.

What Problems Does It Solve?
SmartLine Manifolds help throughout the lifecycle of the transmitters. Some critical tasks include:

• Ensuring accurate and reliable measurement by way of zero checking and calibration.
• Isolating the transmitter for repair, replacement, and maintenance
• Ensuring safety of the instrument, personnel, and environment during isolation
• Venting and draining of the process
• Protecting the instrument from over ranging
