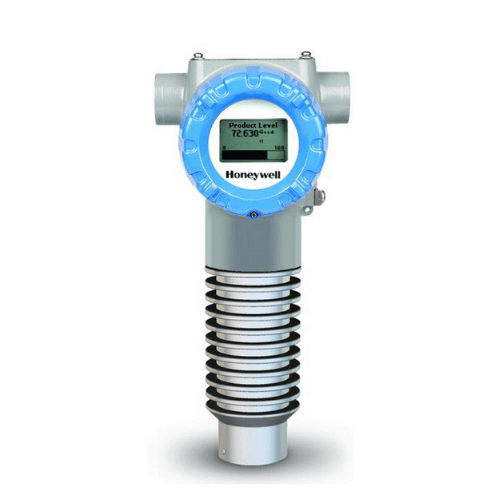

Honeywell SmartLine Guided Wave Radar level transmitters SLG 700

Honeywell SmartLine Guided Wave Radar ( SLG 700)

SmartLine Level transmitters employ guided wave radar (GWR) technology to accurately measure liquid levels across diverse installations, operating effectively within specified pressure and temperature limits.

Offering superior performance, modular design, an enhanced display, and excellent integration capabilities, SmartLine® Level Transmitters provide total value throughout the entire plant lifecycle by enabling users to:

• Minimise engineering workload, lower project expenses, and shorten startup time.
• Avoid unplanned downtime and application errors
• Increase security against unauthorised access
• Reduce spare parts inventory
• Shorten repair time.

Honeywell provides the SmartLine Level Application and Validation Tool, designed to assist users in selecting the most suitable measurement solution for their specific application.

What Is It?
SmartLine Level transmitters employ guided wave radar (GWR) technology and can accurately measure liquid levels across a range of installations, operating effectively within standard pressure and temperature ranges.

It can be deployed at blending tanks, distillation columns, process tanks, separators, solid silos (inventory) and storage tanks.

It does not require calibration or commissioning upon installation, and can measure liquid interface with or without an air gap.

Additionally, the level meter can measure both level and interface simultaneously and is capable of measuring media with a dielectric constant of 1.4 or above.

A variety of rigid and flexible probes allows measurement in silos and tanks up to 50 m (164 ft) high.

How Does It Work?
SmartLine Level Transmitter offers:

• A validation tool designed to prevent expensive errors by verifying the level transmitter against the process tank.
• Modular design: Some modules are shared with SmartLine pressure and temperature transmitters, further reducing inventory and enhancing flexibility
• Rich, advanced display and local configuration capabilities: In addition to configuring with any handheld device using the DTMs (Device Type Manager), users can configure the transmitters through externally accessible buttons, even in an intrinsically safe environment.
• Integration with all control systems: This includes seamless integration with Experion® PKS that provides extended diagnostics, maintenance status display and transmitter messaging.

What Problems Does It Solve?
SmartLine Level Transmitters are ideal for applications that previously relied on capacitance, hydrostatic, or ultrasonic level measurement technologies.

SmartLine Level Transmitters offer superior reproducibility and accuracy, as they are immune to variations in conductivity, density, pressure, and temperature. Additionally, because the signal travels up and down the probe, these transmitters remain unaffected by the angle of repose of granular materials.
