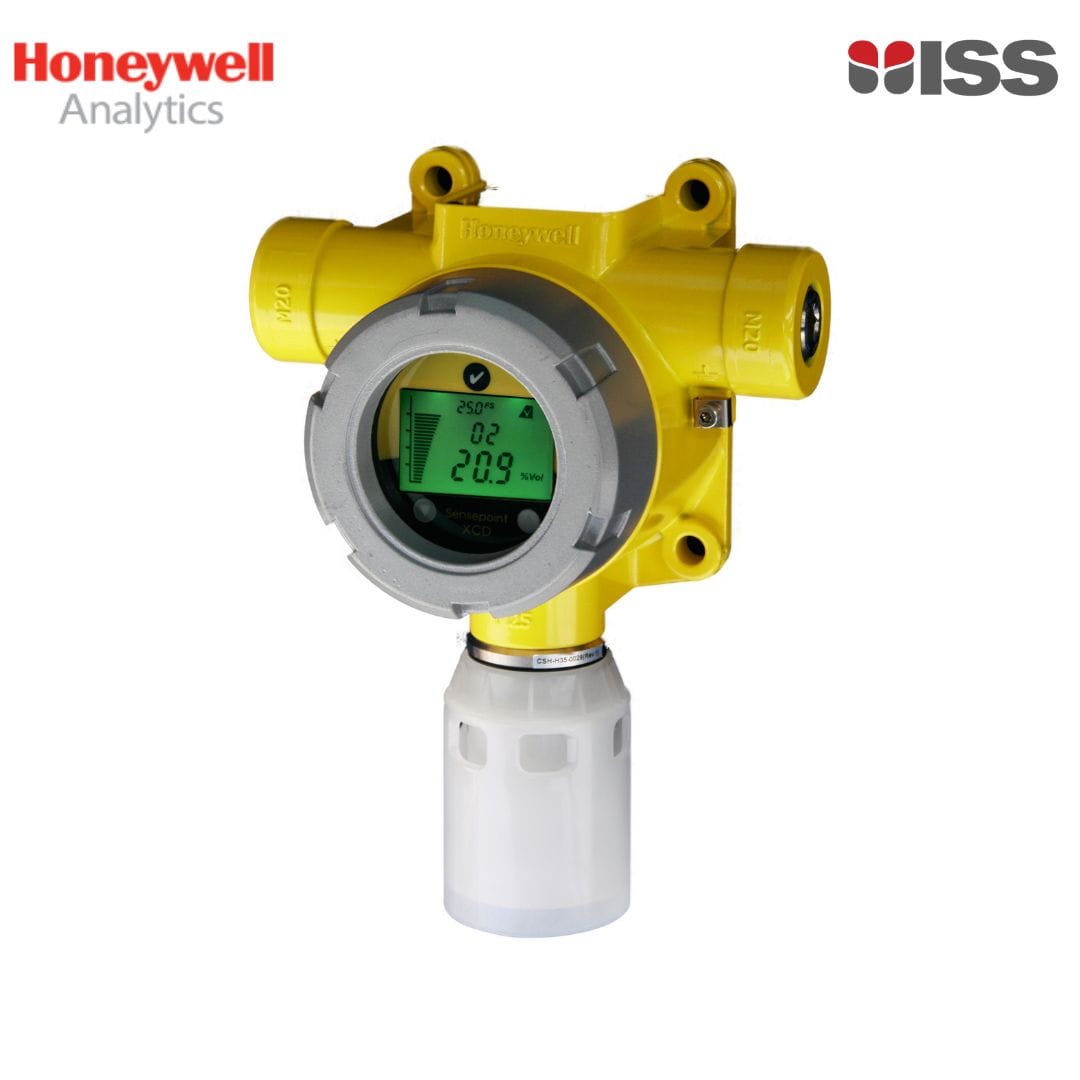

SPXCDASMNX Honeywell Sensepoint XCD Gas Detector,4 to 20 mA output,ATEX/IECEx/Asian approvals (316SS), M20,nitrogen dioxide EC

Honeywell Sensepoint XCD Gas Detector. Contains 4 to 20 mA output and 2 x M20 entries. Includes nitrogen dioxide (NO2) EC sensor cartridge 0 to 10ppm, user selectable FSD between 10 and 50ppm (5 ppm resolution). Includes nylon weather protection.

Standard: ATEX/IECEx/Asian approvals

Material: Painted 316 Stainless Steel

P/N: SPXCDASMNX

The standard XCD is an Ex d gas detector designed for Zone 1 hazardous areas and comes in three variants: flammable, oxygen, and toxic gas detection. Each unit includes a pre-installed stainless steel sensor cartridge, fully tested and calibrated for immediate installation. Replacement sensor cartridges are also available. The device is configured and controlled via a magnet, eliminating the need to open the enclosure, while its tri-colour backlit display delivers clear, immediate status updates for quick assessment.

The XCD catalytic sensor detects flammable gases within a 0 to 100% LEL range. Infrared (IR) sensor variants are designed to measure methane over the same range, propane, with sensitivity to ethylene and butane, and carbon dioxide (CO2). Both sensor types operate with the flammable transmitter model. Electrochemical cell (EC) sensors are available to monitor oxygen and hazardous gases, including carbon monoxide (CO), hydrogen sulphide (H2S), nitrogen dioxide (NO2), and hydrogen (H2).

Each unit is delivered complete with:

• pre-fitted sensor
• nylon weather protection
• stainless steel blanking plug
• magnetic wand
• hex keys

All transmitters are also available with a Modbus interface as an option.
