    Sensepoint Toxic SO2 0-50ppm. Sensor M25

    Sensepoint Toxic SO2 0-50ppm. Sensor M25

    2106B1521
    • £726.16

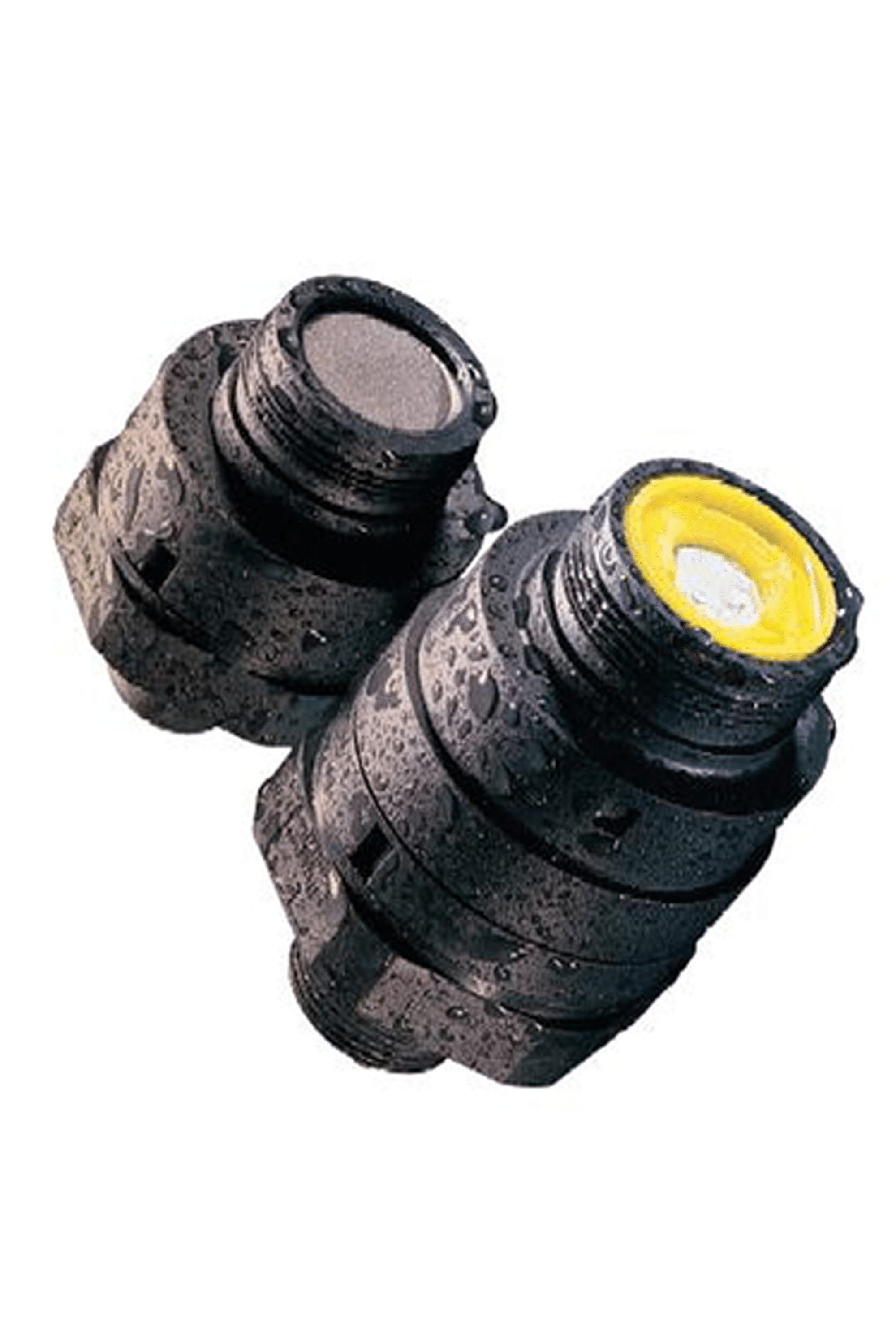

    Sensepoint Toxic SO2 0-50ppm. Sensor M25

    The Sensepoint range of flammable, toxic and oxygen gas detectors offer users a high quality, low-cost solution to their industrial gas monitoring needs. Installation in potentially explosive atmospheres is made by the use of a suitable Exd or Exe approved junction box. The industry standard outputs from Sensepoint are connected to either a choice of Honeywell Analytics’ controllers or 3rd party DCS/PLC systems. both flammable and toxic versions are certified to ATEX and IECEx.

    Gas and Range

    Operating Temperature -15 to +40˚C
    Operating Humidity Continuous: 20 to 90% RH (non-condensing). Intermittent: 10 to 99% RH (non-condensing)
    Storage Conditions 0 to 25˚C; 30 to 70% RH
    Operating Pressure 90 to 110kPa
    Warm-up Time < 3 minutes
    Supply 18 to 30VDC; 0.9W maximum
    Signal Output Loop powered 4-20mA
    Linearity < 5% fsd
    Operating Life 18 months (typical)
    Storage Life 6 months


    Response Time

    T20  -
    T50 < 10 secs
    T90 < 90 secs



    Stability (zero)

    With time < ±2% fsd / yr
    With temperature < ±5% fsd
    With humidity < ±10% fsd


    Stability (span)

    With time < ±2% fsd / yr
    With temperature < ±15% fsd
    With humidity < ±10% fsd


    Please Note: For a complete sensor order correct number of BARTEC J.Box (00780-A-0100) and Weather Housing (02000-A-1635)
