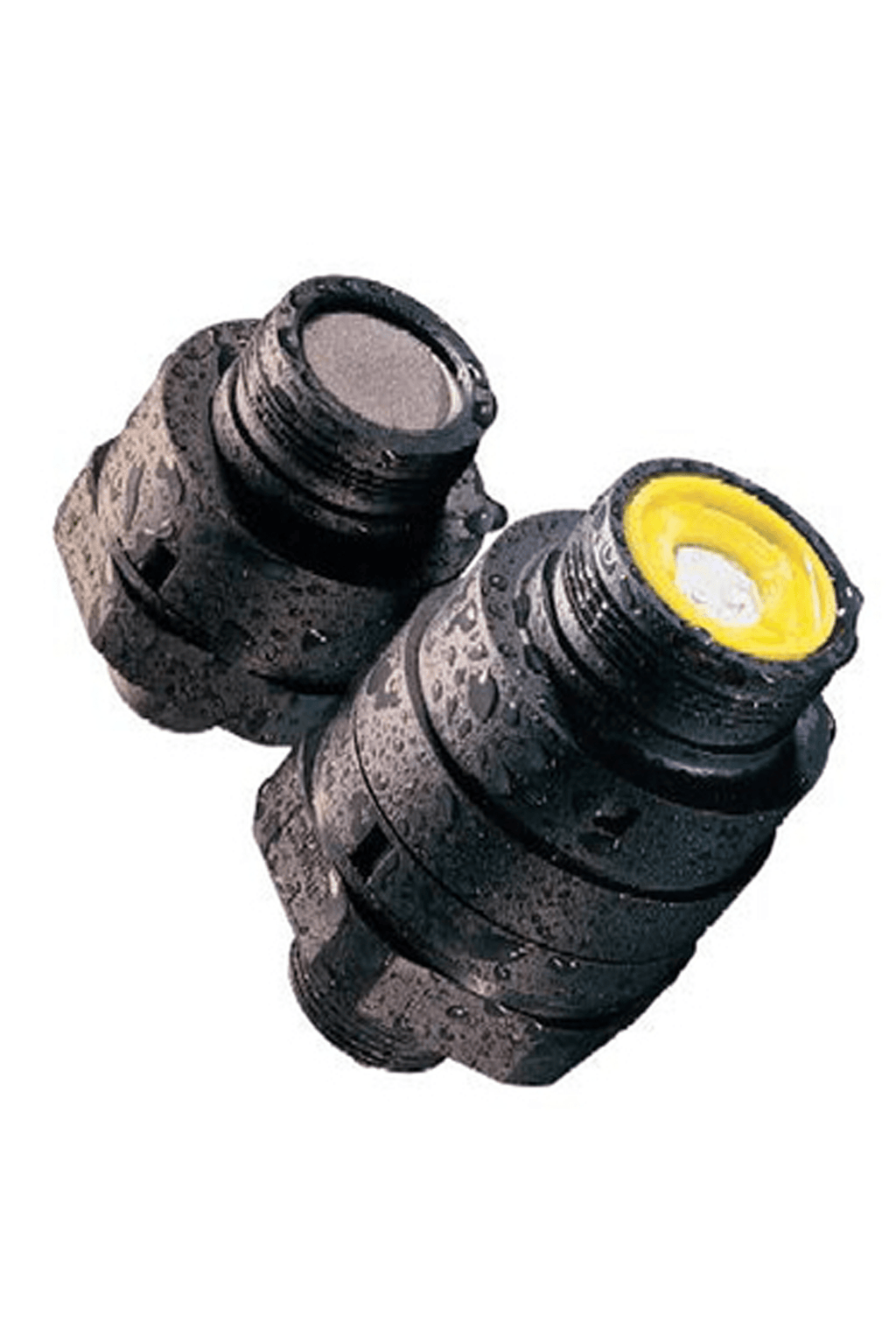

2106B1801 Honeywell Sensepoint H2S 0-50 ppm Toxic Sensor 3/4NPT CSA

Honeywell AnalyticsSKU: 2106B1801

Sale price£675.00


Sensepoint Toxic H2S 0-50ppm. Sensor 3/4NPT CSA

The Sensepoint range of flammable, toxic and oxygen gas detectors offer users a high quality, low-cost solution to their industrial gas monitoring needs. Installation in potentially explosive atmospheres is made by the use of a suitable Exd or Exe approved junction box. The industry standard outputs from Sensepoint are connected to either a choice of Honeywell Analytics’ controllers or 3rd party DCS/PLC systems. both flammable and toxic versions are certified to ATEX and IECEx.

Gas and Range

Operating Temperature -25 to +50˚C
Operating Humidity Continuous: 20 to 90% RH (non-condensing). Intermittent: 10 to 99% RH (non-condensing)
Storage Conditions 0 to 25˚C; 30 to 70% RH
Operating Pressure 90 to 110kPa
Warm-up Time < 3 minutes
Supply 18 to 30VDC; 0.9W maximum
Signal Output Loop powered 4-20mA
Linearity < 5% fsd
Operating Life 2 years (typical)
Storage Life 6 months

Response Time

T20 < 6 secs
T50 < 15 secs
T90 < 40 secs

Stability (zero)

With time < ±2% fsd / yr
With temperature < ±5% fsd
With humidity < ±10% fsd

Stability (span)

With time < ±2% fsd / yr
With temperature < ±25% fsd
With humidity < ±10% fsd

Please Note: For a complete sensor order correct number of BARTEC J.Box (00780-A-0100) and Weather Housing (02000-A-1640)
