Sensepoint Toxic H2 0-1000ppm. Sensor 3/4NPT

Sensepoint Toxic H2 0-1000ppm. Sensor 3/4NPT

2106B1716
  • £758.64

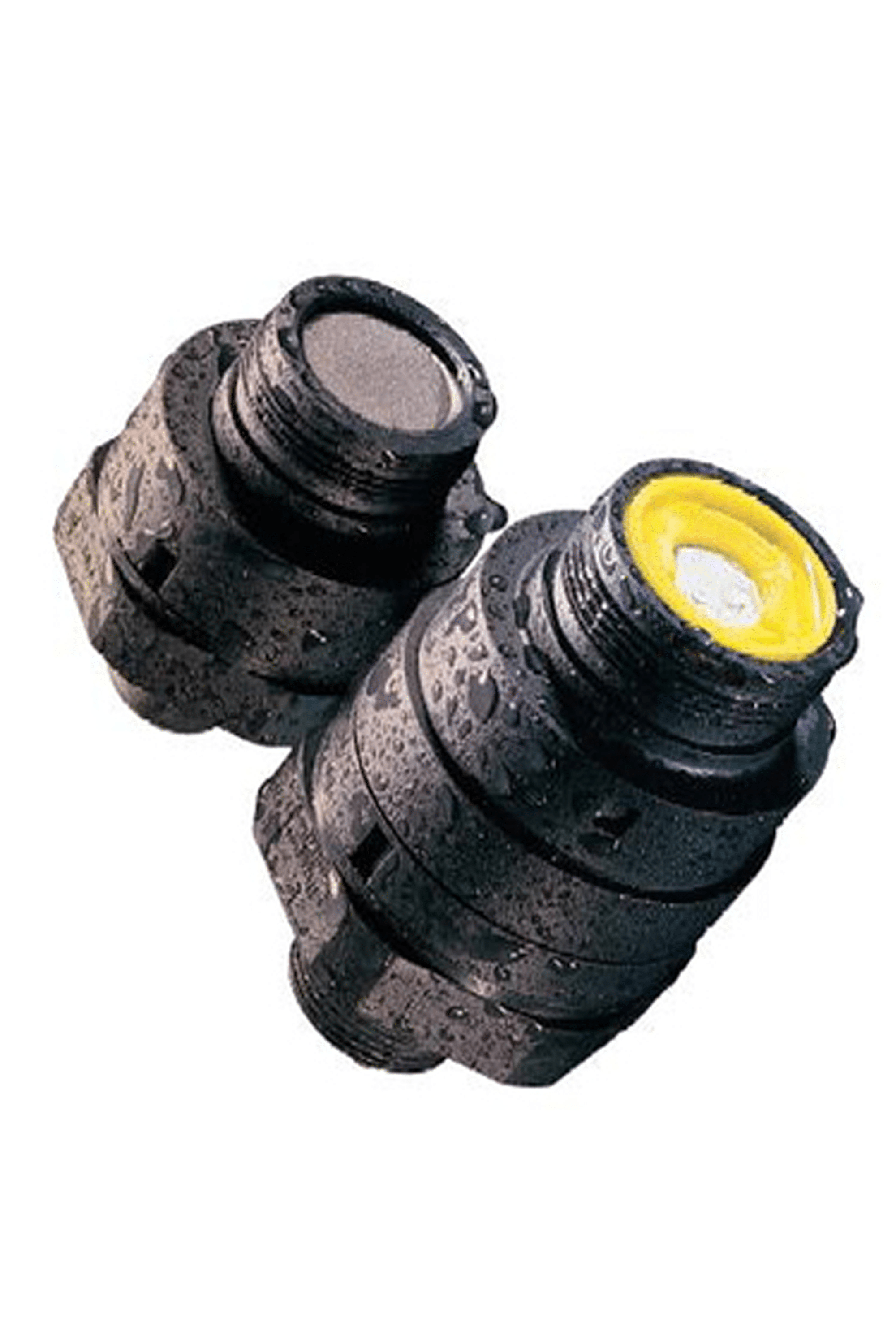

Sensepoint Toxic H2 0-1000ppm. Sensor 3/4NPT

The Sensepoint range of flammable, toxic and oxygen gas detectors offer users a high quality, low-cost solution to their industrial gas monitoring needs. Installation in potentially explosive atmospheres is made by the use of a suitable Exd or Exe approved junction box. The industry standard outputs from Sensepoint are connected to either a choice of Honeywell Analytics’ controllers or 3rd party DCS/PLC systems. both flammable and toxic versions are certified to ATEX and IECEx.

Gas and Range

Operating Temperature -15 to +40˚C
Operating Humidity Continuous: 20 to 90% RH (non-condensing). Intermittent: 10 to 99% RH (non-condensing)
Storage Conditions 0 to 25˚C; 30 to 70% RH
Operating Pressure 90 to 110kPa
Warm-up Time < 3 minutes
Supply 18 to 30VDC; 0.9W maximum
Signal Output Loop powered 4-20mA
Linearity < 5% fsd
Operating Life 18 months (typical)
Storage Life 6 months


Response Time

T20  -
T50 < 10 secs
T90 < 45 secs



Stability (zero)

With time < ±2% fsd / yr
With temperature < ±2% fsd
With humidity < ±2% fsd


Stability (span)

With time < ±2% fsd / yr
With temperature < ±15% fsd
With humidity < ±10% fsd


Please Note: For a complete sensor order correct number of BARTEC J.Box (00780-A-0100) and Weather Housing (02000-A-1635)
