Description

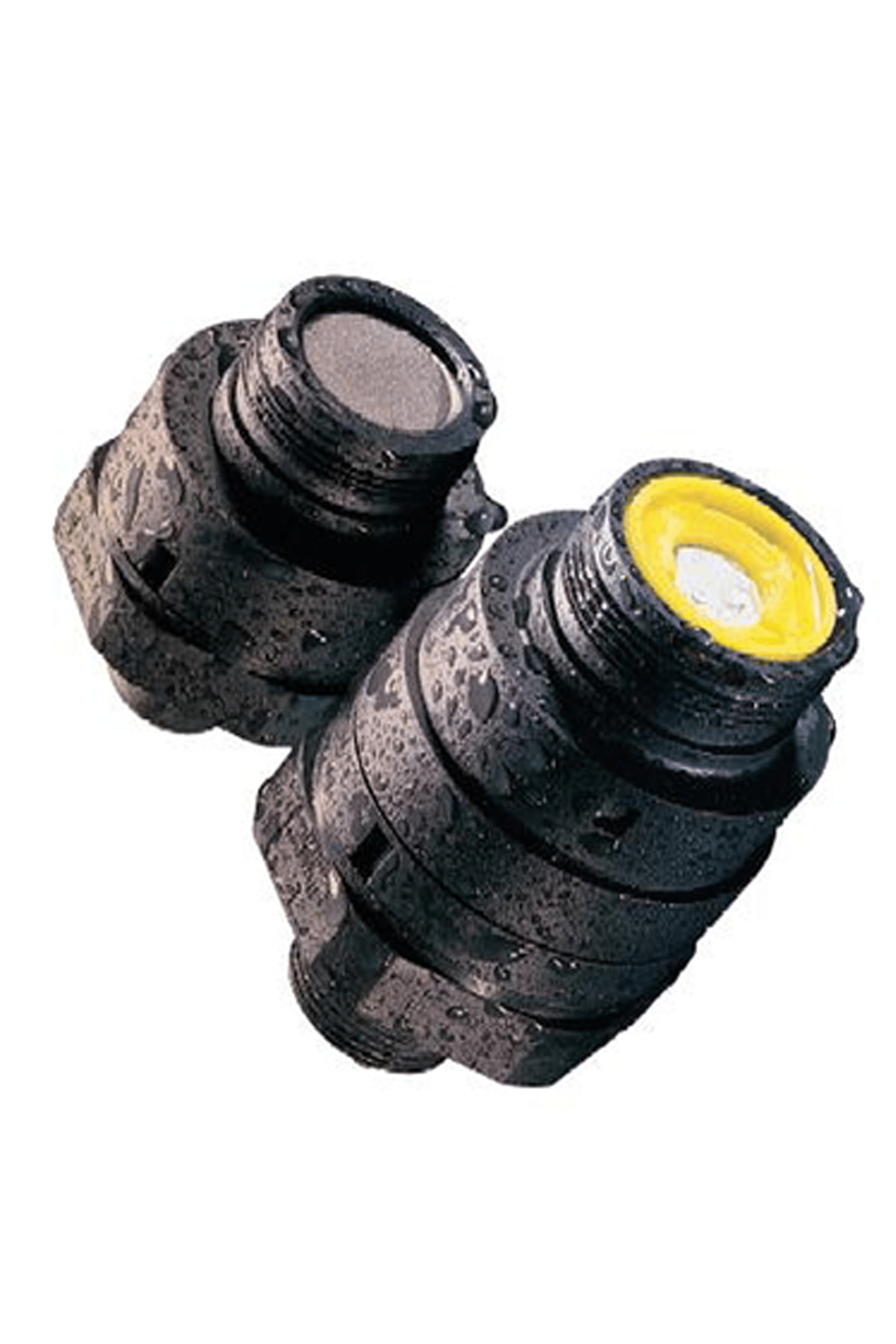

Sensepoint Toxic CO 0-200ppm. Sensor M25
The Sensepoint range of flammable, toxic and oxygen gas detectors offer users a high quality, low-cost solution to their industrial gas monitoring needs. Installation in potentially explosive atmospheres is made by the use of a suitable Exd or Exe approved junction box. The industry standard outputs from Sensepoint are connected to either a choice of Honeywell Analytics’ controllers or 3rd party DCS/PLC systems. both flammable and toxic versions are certified to ATEX and IECEx.
Gas and Range
| Operating Temperature | -20 to +50˚C |
| Operating Humidity | Continuous: 20 to 90% RH (non-condensing). Intermittent: 10 to 99% RH (non-condensing) |
| Storage Conditions | 0 to 25˚C; 30 to 70% RH |
| Operating Pressure | 90 to 110kPa |
| Warm-up Time | < 3 minutes |
| Supply | 18 to 30VDC; 0.9W maximum |
| Signal Output | Loop powered 4-20mA |
| Linearity | < 5% fsd |
| Operating Life | 2 years (typical) |
| Storage Life | 6 months |
Response Time
| T20 | < 5 secs |
| T50 | < 12 secs |
| T90 | < 30 secs |
Stability (zero)
| With time | < ±2% fsd / yr | ||
| With temperature | < ±5% fsd | ||
| With humidity | < ±2% fsd |
Stability (span)
| With time | < ±4% fsd / yr |
| With temperature | < ±20% fsd |
| With humidity | < ±2% fsd |
Please Note: For a complete sensor order correct number of BARTEC J.Box (00780-A-0100) and Weather Housing (02000-A-1635)
