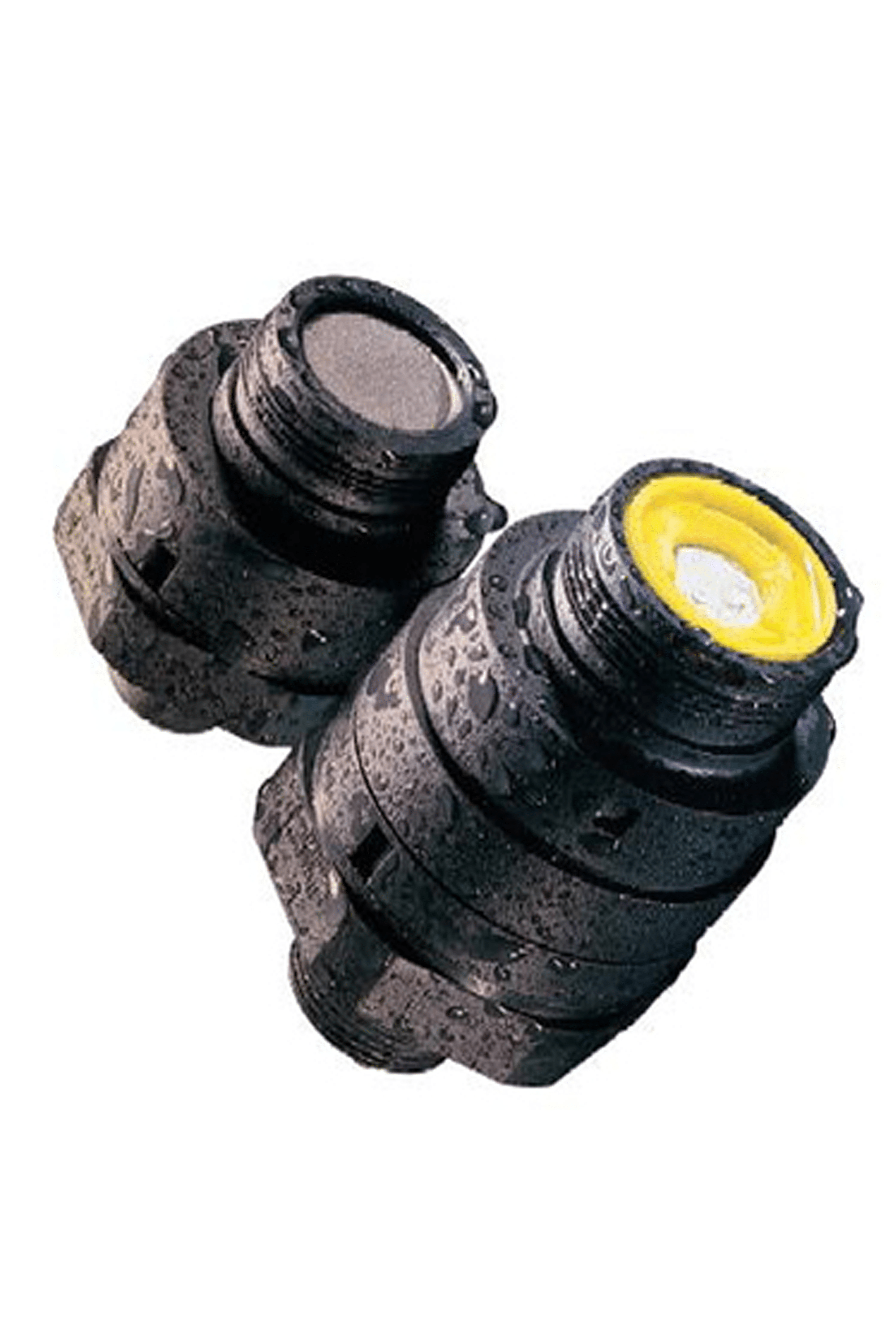

Sensepoint Flammable LEL ppm. Sensor M20

SKU: 2106B1205

Price:
Sale price£638.52

Description

Sensepoint Flammable LEL ppm. Sensor M20

The Sensepoint range of flammable, toxic and oxygen gas detectors offer users a high quality, low-cost solution to their industrial gas monitoring needs. Installation in potentially explosive atmospheres is made by the use of a suitable Exd or Exe approved junction box. The industry standard outputs from Sensepoint are connected to either a choice of Honeywell Analytics’ controllers or 3rd party DCS/PLC systems. both flammable and toxic versions are certified to ATEX and IECEx.

Gas and Range

Operating Temperature -30 to +65˚C
Operating Humidity Continuous: 20 to 90% RH (non-condensing). Intermittent: 10 to 99% RH (non-condensing)
Storage Conditions 0 to 25˚C; 30 to 70% RH
Operating Pressure 90 to 110kPa
Warm-up Time < 20 minutes
Supply 200mA; 0.7W maximum
Signal Output mV bridge
Linearity < 5% fsd or ±10% of reading
Operating Life 5 years (typical)
Storage Life Typically, over 5 years when in original sealed packaging



Response Time

T20  -
T50 < 5 secs
T90 < 10 secs



Stability (zero)

With time < ±3% fsd / yr
With temperature < ±3% fsd
With humidity < ±1% fsd



Stability (span)

With time < ±3% fsd / yr
With temperature < ±8% fsd
With humidity < ±2% fsd



Please Note: For a complete sensor order correct number of BARTEC J.Box (00780-A-0100) and Weather Housing (02000-A-1640)
