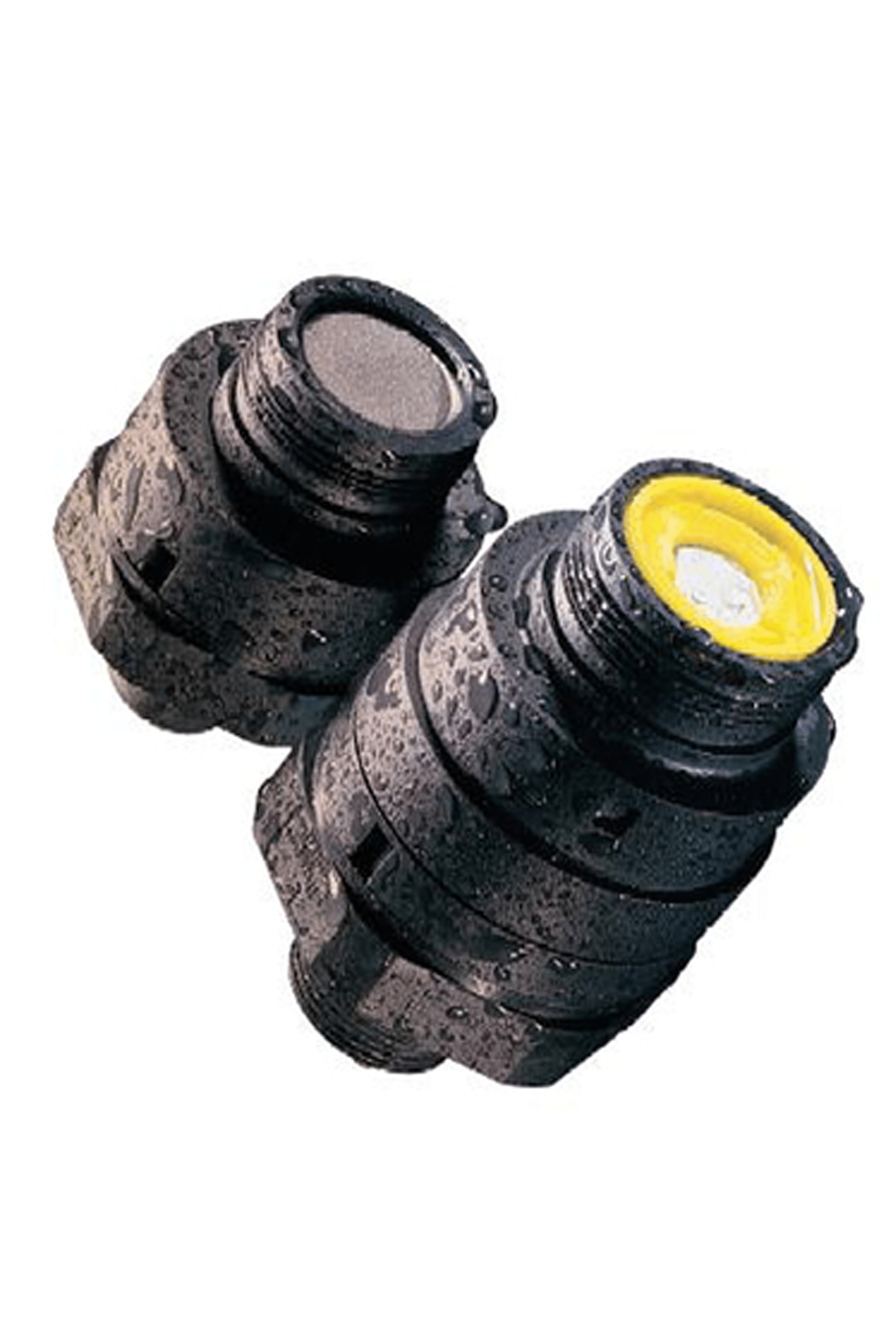

    Sensepoint Flammable 0-100% LEL. Sensor M25

    Sensepoint Flammable 0-100% LEL. Sensor M25

    2106B1201
    • £350.88


    Sensepoint Flammable 0-100% LEL. Sensor M25

    The Sensepoint range of flammable, toxic and oxygen gas detectors offer users a high quality, low-cost solution to their industrial gas monitoring needs. Installation in potentially explosive atmospheres is made by the use of a suitable Exd or Exe approved junction box. The industry standard outputs from Sensepoint are connected to either a choice of Honeywell Analytics’ controllers or 3rd party DCS/PLC systems. both flammable and toxic versions are certified to ATEX and IECEx.

    Gas and Range

    Operating Temperature -40 to +80˚C
    Operating Humidity Continuous: 20 to 90% RH (non-condensing). Intermittent: 10 to 99% RH (non-condensing)
    Storage Conditions 0 to 25˚C; 30 to 70% RH
    Operating Pressure 90 to 110kPa
    Warm-up Time < 10 minutes
    Supply 200mA; 0.7W maximum
    Signal Output mV bridge
    Linearity < 5% fsd or ±10% of reading
    Operating Life 5 years (typical)
    Storage Life Typically, over 5 years when in original sealed packaging



    Response Time

    T20  -
    T50 < 5 secs
    T90 < 10 secs



    Stability (zero)

    With time < ±3% fsd / yr
    With temperature < ±1% fsd
    With humidity < ±1% fsd



    Stability (span)

    With time < ±3% fsd / yr
    With temperature < ±3% fsd
    With humidity < ±2% fsd



    Please Note: For a complete sensor order correct number of BARTEC J.Box (00780-A-0100) and Weather Housing (02000-A-1640)
