9602-0505 Honeywell MST Satellite XT R

Honeywell AnalyticsSKU: 9602-0505

Sale price£1,386.00

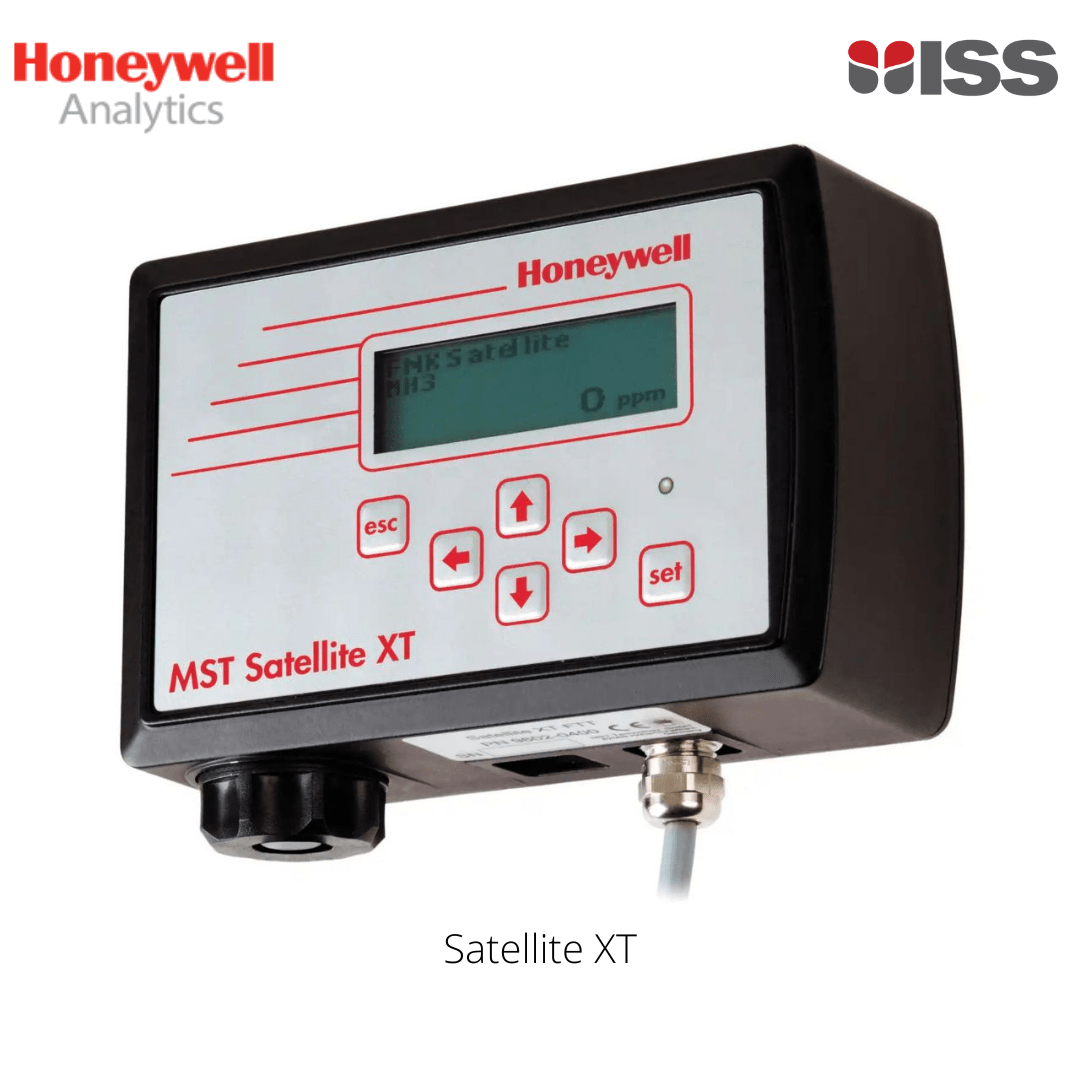

Satellite XT R

The Satellite XT is the simple solution for all “Point-of-Use” gas detection needs. Based upon the markets smallest and most reliable electrochemical cell technology, the Satellite XT offers the flexibility, simplicity and application ease. The Satellite XT can be purchased in either an analogue or digital configuration allowing it to interface with new or existing facility control technologies.

Power Requirements:
Voltage: 12 to 24 VDC
Consumption: max.1.4W
Network: 4-wire shielded cable 2 x 2 x 1.0mm2/ 17 AWG (approx. 2m delivered with instrument)
Relay Contacts:

6-wire shielded cable 6 x 0.25mm2/ 23 AWG (approx. 3m delivered with instrument)

Relay Outputs:
Contacts: 3 x SPST (Single-Pole Single-Throw)
Max. Ratings: 250 VAC / 30 VDC, 2A
Graphic Display: 122 x 32 dots with backlight
Status LED: Green
Keypad: 6 touch-sensitive membrane function keys
Physical Dimsions:
Size (LxWxD): 145 x 95 x 50mm
Weight: 620g
Mounting: Special Mounting Plate (delivered with instrument)

EN 55022

EN 50082-2

Operating Conditions:

-20°C up to +40°C

-4°F up to +104°F

Pressure: 700 up to 1300hPa
Humidity: 20 up to 90% r.h.
