9612-0405 Honeywell MST Satellite FTT/R

Honeywell AnalyticsSKU: 9612-0405

Price:
Sale price£1,731.00

Description

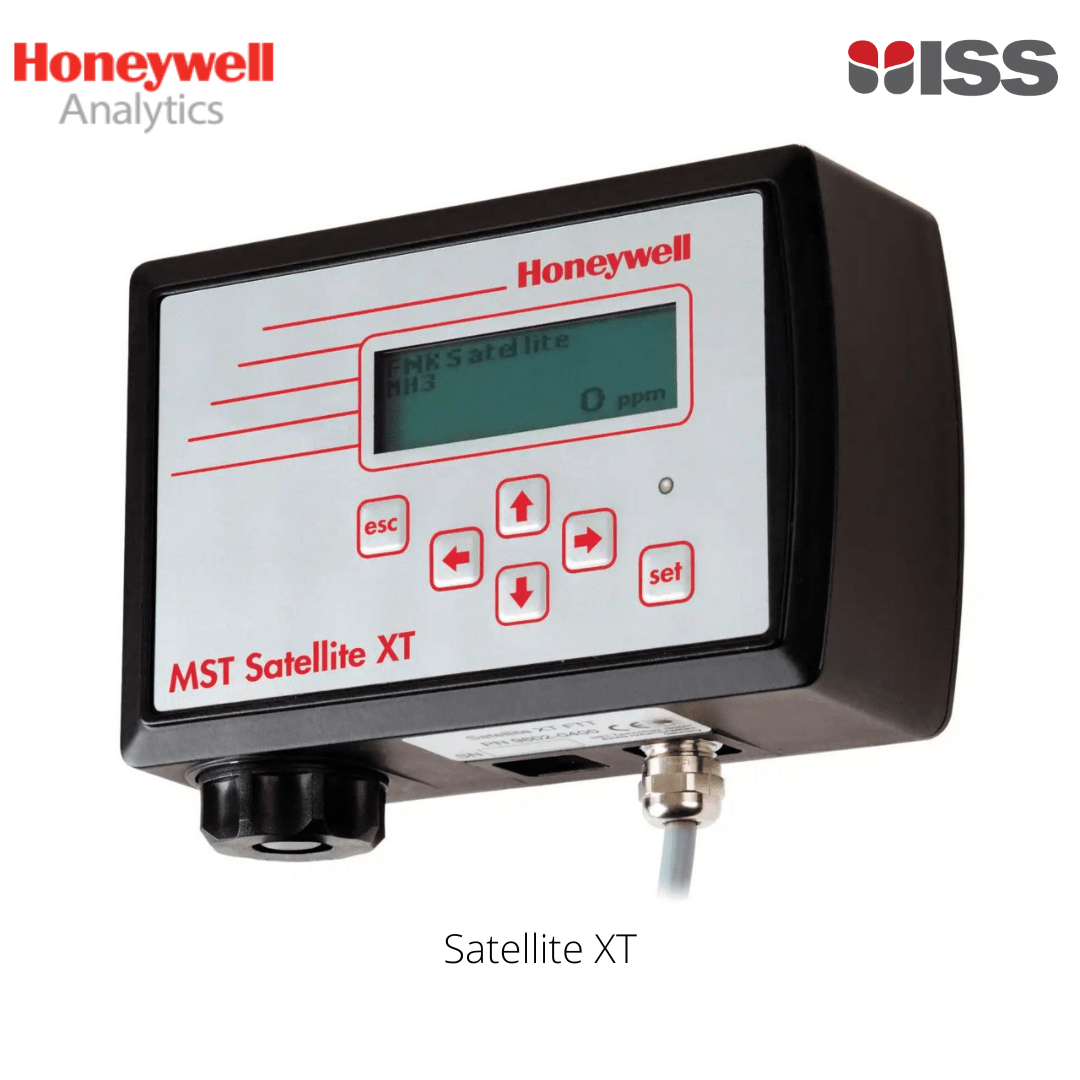

Satellite XT FTT/R, protection class IP65

The Satellite XT is the simple solution for all “Point-of-Use” gas detection needs. Based upon the markets smallest and most reliable electrochemical cell technology, the Satellite XT offers the flexibility, simplicity and application ease. The Satellite XT can be purchased in either an analogue or digital configuration allowing it to interface with new or existing facility control technologies.

Power Requirements:
Voltage: 12 to 24 VDC
Consumption: max.1.4W
Network:
Data Transmission: 78Kb per second
Wiring topologies: Free, e.g. Bus, Star, Loop, or Mixed
Wiring:
Network: 4-wire shielded cable 2 x 2 x 1.0mm2/ 17 AWG (approx. 2m delivered with instrument)
Relay Contacts:

6-wire shielded cable 6 x 0.25mm2/ 23 AWG (approx. 3m delivered with instrument)

Relay Outputs:
Contacts: 3 x SPST (Single-Pole Single-Throw)
Max. Ratings: 250 VAC / 30 VDC, 2A
Graphic Display: 122 x 32 dots with backlight
Status LED: Green
Keypad: 6 touch-sensitive membrane function keys
Physical Dimsions:
Size (LxWxD): 145 x 95 x 50mm
Weight: 650g
Mounting: Special Mounting Plate (delivered with instrument)
Housing Protection Class: IP 52 (option: IP 65)
RFI / EMC:

EN 55022

EN 50082-2

Operating Conditions:
Temperature:

-20°C up to +40°C

-4°F up to +104°F

Pressure: 700 up to 1300hPa
Humidity: 20 up to 90% r.h.
