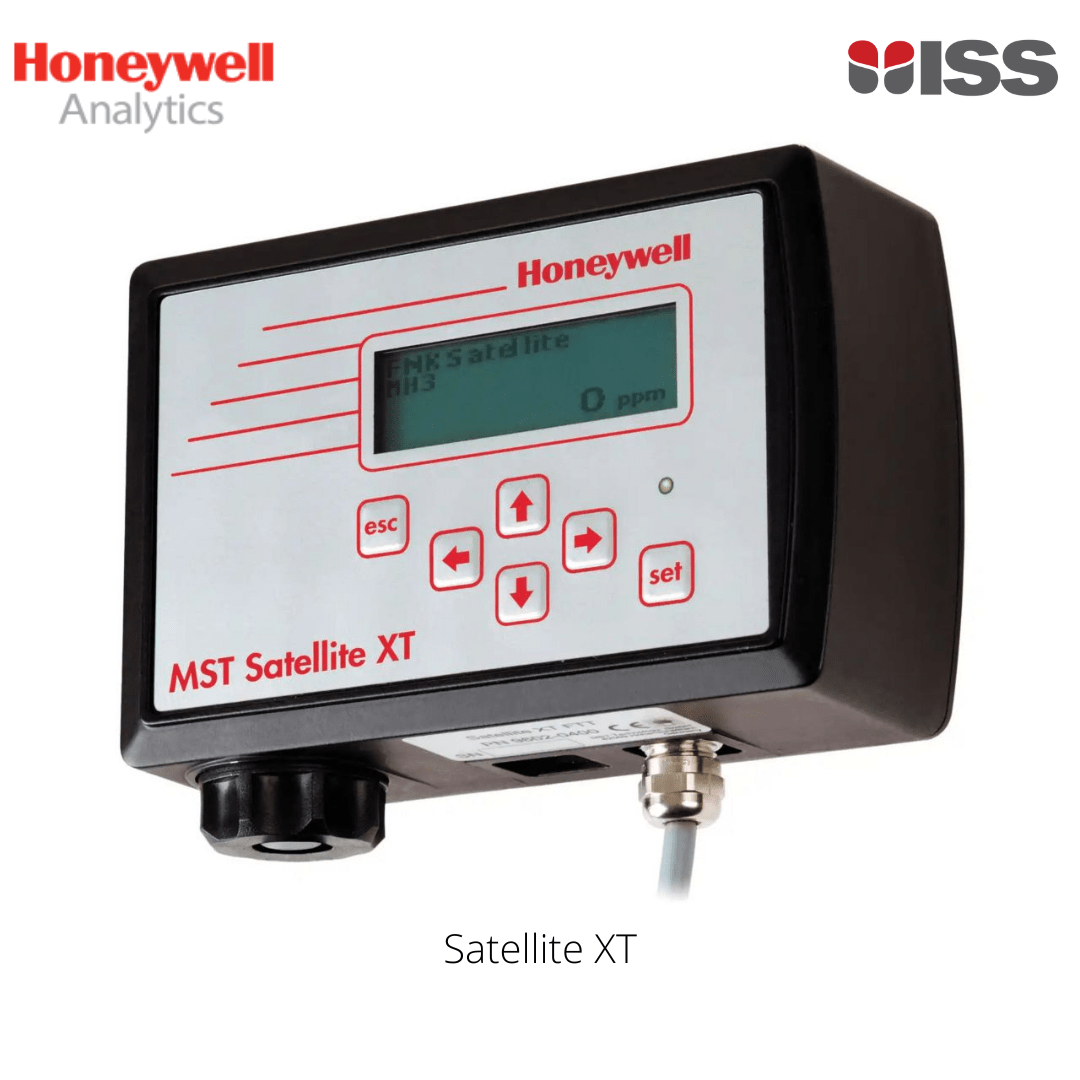

9612-0205 Honeywell Satellite XT 4-20mA WITH RELAYS IP 65
Roll over image to zoom in Click on image to zoom
9612-0205 Honeywell Satellite XT 4-20mA WITH RELAYS IP 65

9612-0205 Honeywell Satellite XT 4-20mA WITH RELAYS IP 65

Honeywell AnalyticsSKU: 9612-0205
Price:
£1,731.00

Description

Satellite XT 4-20mA/R, protection class IP65

The Satellite XT is the simple solution for all “Point-of-Use” gas detection needs. Based upon the markets smallest and most reliable electrochemical cell technology, the Satellite XT offers the flexibility, simplicity and application ease. The Satellite XT can be purchased in either an analogue or digital configuration allowing it to interface with new or existing facility control technologies.

Power Requirements:
Voltage: 12 to 24 VDC
Consumption: max.1.8W
Analog Signal Output:
Monitoring Mode: 4-20 mA
Warning Condition: 2.8-4 mA 0.1Hz
Maintenance Mode: 2.4-4 mA 1Hz
Fault Range: 0-2 mA
Wiring:
Analogue Interface:

3-wire shielded cable 3x1.0mm2/ 17 AWG (approx. 2m delivered with instrument)
Relay Contacts:

6-wire shielded cable 6x0.25mm2/ 23 AWG (approx. 3m delivered with instrument)
Relay Outpus:
Contacts: 3 x SPDT (Single-Pole Single-Throw)
Max. ratings: 250 VAC / 30 VDC, 2A
Graphic Display: 122 x 32 dots with backlight
Status LED: Green
Keypad: 6 touch-sensitive membrane function keys
Physical Dimsions:
Size (LxWxD): 145 x 95 x 50mm
Weight: 650g
Mounting: Special Mounting Plate (delivered with instrument)
Housing Protection Class: IP 52 (option: IP 65)
RFI / EMC:

EN 55022

EN 50082-2
Operating Conditions:
Temperature:

-20°C up to +40°C

-4°F up to +104°F
Pressure: 700 up to 1300hPa
Humidity: 20 up to 90% r.h.
