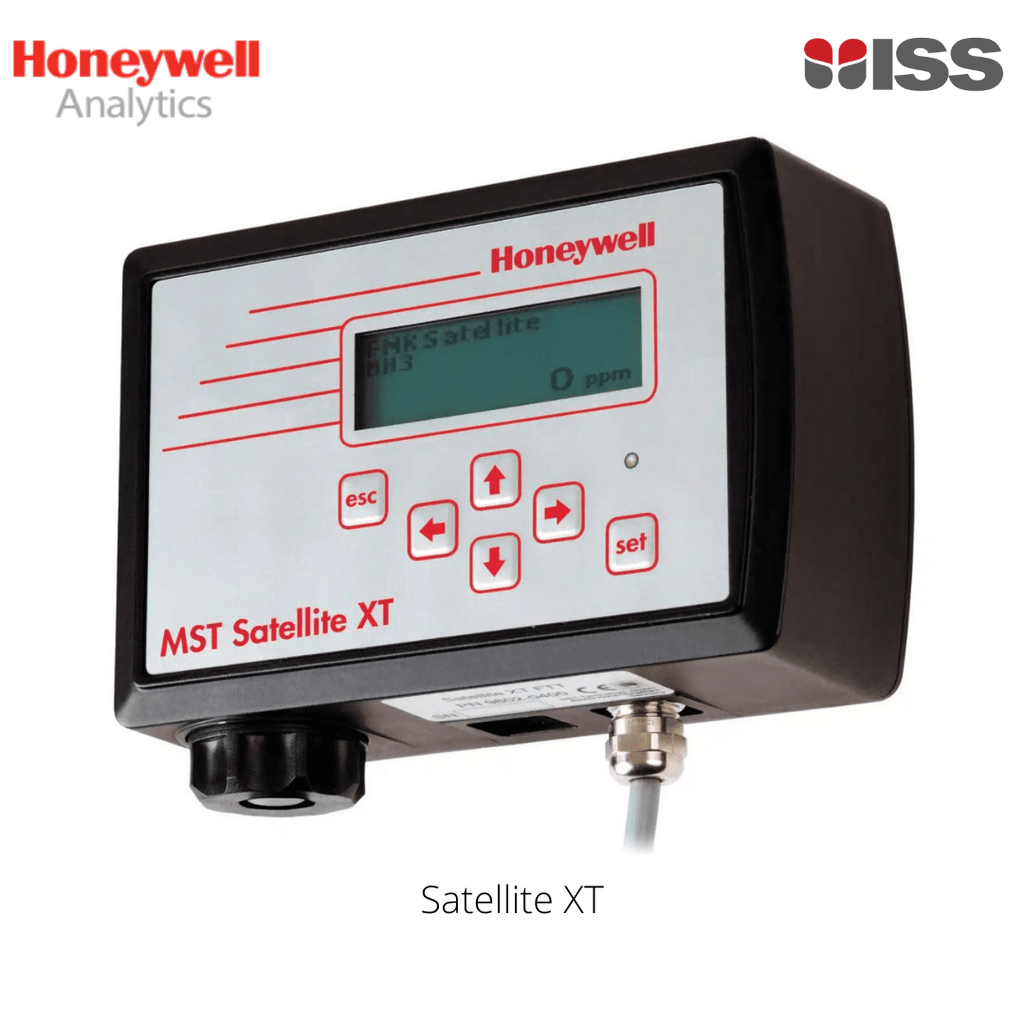

    Satellite XT 4-20mA/C/R, protection class IP65

    Satellite XT 4-20mA/C/R, protection class IP65

    • £1,722.60

    Satellite XT 4-20mA/C/R, protection class IP65

    The Satellite XT is the simple solution for all “Point-of-Use” gas detection needs. Based upon the markets smallest and most reliable electrochemical cell technology, the Satellite XT offers the flexibility, simplicity and application ease. The Satellite XT can be purchased in either an analogue or digital configuration allowing it to interface with new or existing facility control technologies.

     Power Requirements:
    Voltage: 12 to 24 VDC
    Consumption: max.1.4W
    Analog Signal Output:
    Monitoring Mode: 4-20 mA
    Warning Condition: 2.8-4 mA 0.1Hz
    Maintenance Mode: 2.4-4 mA 1Hz
    Fault Range: 0-2 mA
    Analogue Interface:

    3-wire shielded cable  3x1.0mm2/ 17 AWG (approx. 2m delivered with instrument)

    Relay Contacts:


    Graphic Display: 122 x 32 dots with backlight
    Status LED: Green
    Keypad: 6 touch-sensitive membrane function keys
    Physical Dimsions:
    Size (LxWxD): 145 x 95 x 50mm
    Weight: 520g
    Mounting: Special Mounting Plate (delivered with instrument)
    Housing Protection Class: IP 52 (option: IP 65)
    RFI / EMC:

     EN 55011

    EN 50082-2

    Operating Conditions:

    -20°C up to +40°C

    -4°F up to +104°F

    Pressure: 700 up to 1300hPa
    Humidity: 20 up to 90% r.h.
