Satellite XT 4-20mA/C

9602-0250

£1,386.45

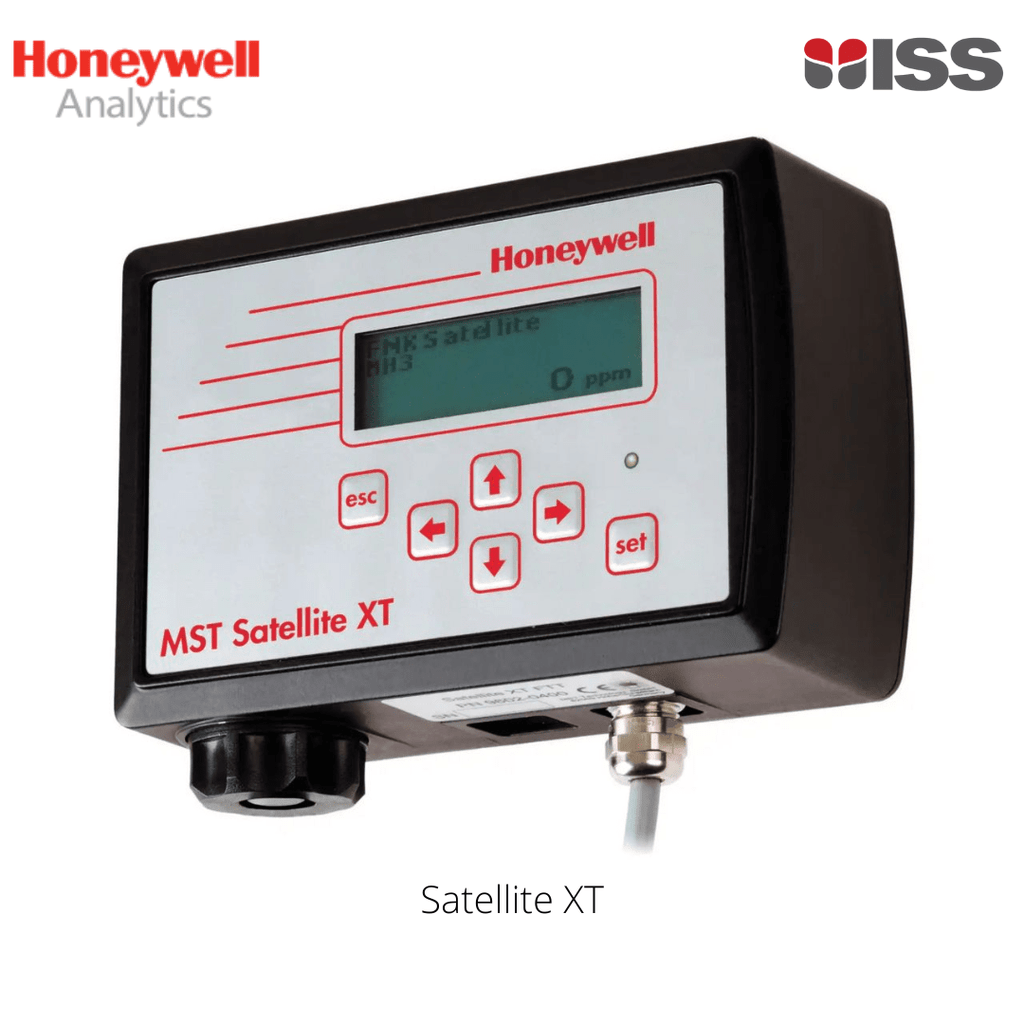

Satellite XT 4-20mA/C

The Satellite XT is the simple solution for all “Point-of-Use” gas detection needs. Based upon the markets smallest and most reliable electrochemical cell technology, the Satellite XT offers the flexibility, simplicity and application ease. The Satellite XT can be purchased in either an analogue or digital configuration allowing it to interface with new or existing facility control technologies.

Power Requirements:

Voltage:	12 to 24 VDC
Consumption:	max.1.4W

Analog Signal Output:

Monitoring Mode:	4-20 mA
Warning Condition:	2.8-4 mA 0.1Hz
Maintenance Mode:	2.4-4 mA 1Hz
Fault Range:	0-2 mA

Wiring:

Analogue Interface:	3-wire shielded cable 3x1.0mm2/ 17 AWG (approx. 2m delivered with instrument)
Relay Contacts:	None.

Graphic Display:

122 x 32 dots with backlight

Status LED:

Green

Keypad:

6 touch-sensitive membrane function keys

Physical Dimsions:

Size (LxWxD):	145 x 95 x 50mm
Weight:	520g

Mounting:

Special Mounting Plate (delivered with instrument)

Housing Protection Class:

IP 52 (option: IP 65)

RFI / EMC:

EN 55011

EN 50082-2

Operating Conditions:

Temperature:

-20°C up to +40°C

-4°F up to +104°F

Pressure:

700 up to 1300hPa

Humidity:

20 up to 90% r.h.
