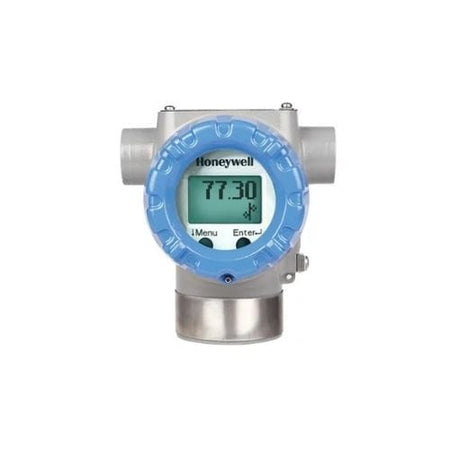

Honeywell RMA Remote Meter Assemblies

RMA Remote Meter Assemblies provide process measurement values in remote locations where the integral meter in the field instrument is difficult to view.

They are used as output and status indicators for Honeywell SmartLine field products and can also be used as output indicators with any non-Honeywell transmitter operating within 4 to 20ma current loop or the appropriate digital protocol.

What Is It?

The RMA is available in the following configurations:

• RMA801: Honeywell Digital Enhanced (DE) protocol compatible indicator. This loop-powered remote meter assembly functions in both analog mode (4-20 mA) and DE mode. In analogue mode, it supports connection with HART-compatible devices.

• RMA803: Foundation Fieldbus H1 compatible indicator capable of displaying up to eight values from devices on the same H1 link. The device can show readings in multiple engineering units and offers configurable display formats, including PV, Bar Graph, and Trend Displays.
