Honeywell Honeywell Remote Diaphragm Transmitters - SmartLine STR700
Honeywell Honeywell Remote Diaphragm Transmitters - SmartLine STR700
Honeywell

Honeywell Remote Diaphragm Transmitters - SmartLine STR700

SKU: STR700

Configuration Required -Contact ISS

Email +44 28 37539 950

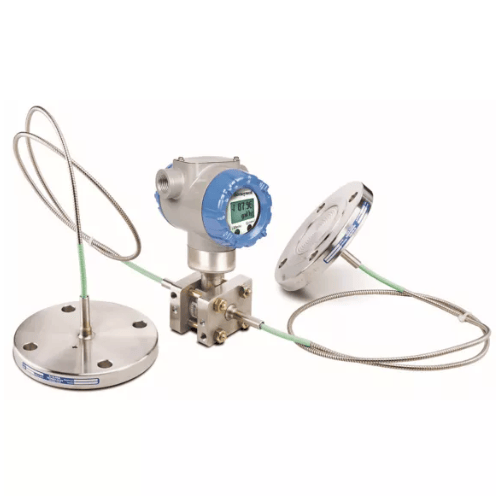

SmartLine® ST700 Remote Diaphragm Seal Transmitters provide accurate measurement in a wide variety of applications involving corrosive or high-temperature process fluids.

Honeywell offers the following ST700 Remote Diaphragm Seal Transmitters:

  • Flush flange seals
  • Flange seal with extended diaphragm
  • Pancake seals
  • Sanitary seals
  • Chemical tee Taylor wedge
  • Seals with threaded process connections
  • Saddle seals
  • Calibration rings
  • Stainless steel armour and PVC-coated, stainless steel armour capillaries
  • 2” Stainless steel nipples
  • Welded meter body

Four models are available with the following range and span limits:

STR73D/ STR735D -100 to 100 psig (-7 to 7 bar) 1 to 100 psig (0.07 to 7 bar)
STR74G/ STR745G -500 to 500 psig (-35 to 35 bar) 5 to 500 psig (0.035 to 35 bar)
