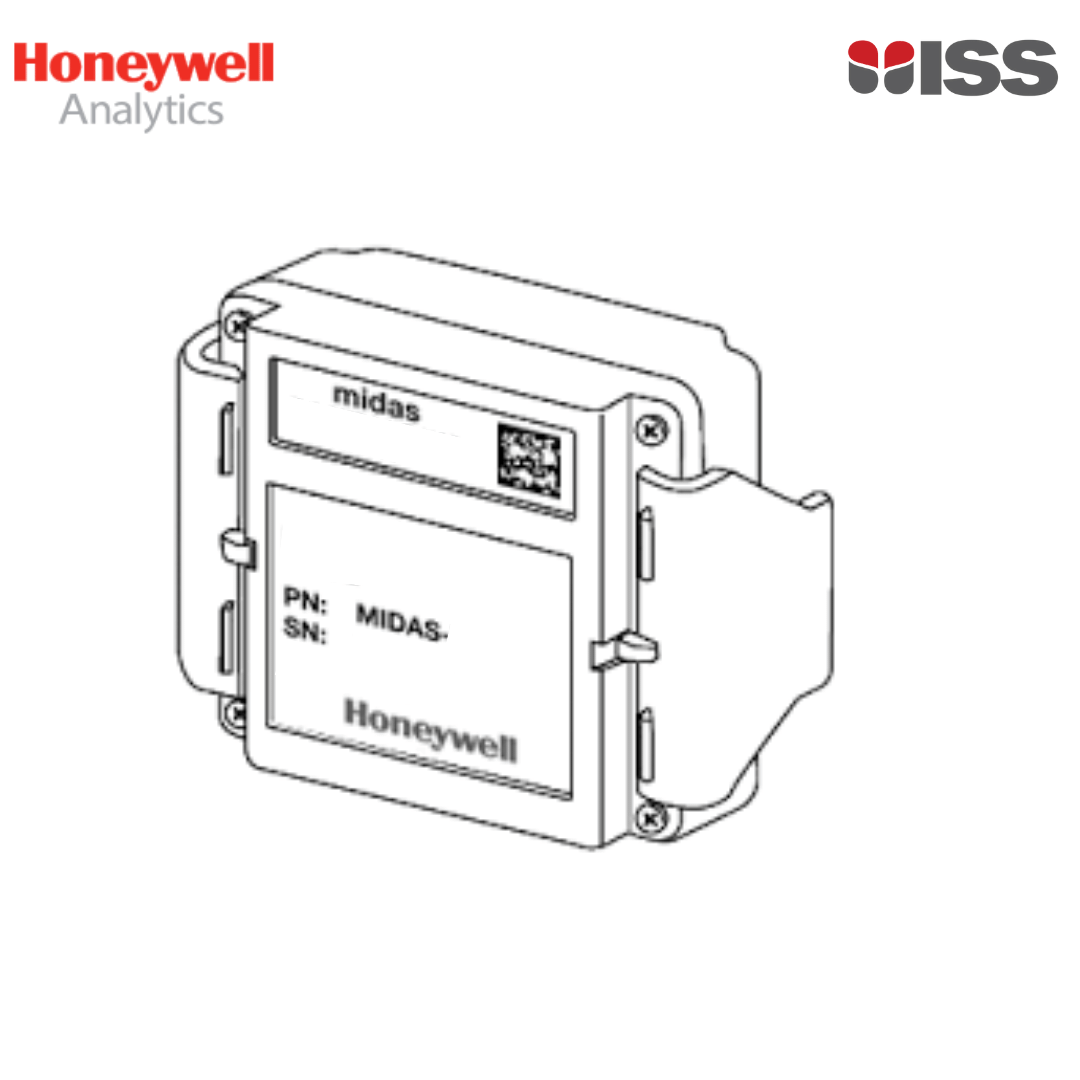

MIDAS-L-O2S Honeywell Oxygen (O2) 3 year warranty Range: 0.2-25% v/v Midas® Sensor Cartridge

Honeywell AnalyticsSKU: MIDAS-L-O2S

Price:
Sale price£366.00

Description

Midas Sensor Cartridges: O2

Cartridges are required for all of the transmitters sensors at time of purchase and for replacement. Several Midas cartridges can be configured via the transmitter to read a number of different gases based on a common chemical family. Actual details for the sensor detection range are included in the sensor cartridge data sheet and the Midas technical manual. Midas sensor cartridges can be ordered as part of a kit with the universal Midas transmitter, or as a replacement part with either standard or extended warranty cover.

Gas Measured: Oxygen (O2 )
Part No.: MIDAS-L-O2S 3 year warranty
Sensor Technology: 3 electrode electrochemical cell
Measuring Range (ppm): O2 0 – 25% v/v
Minimum Alarm 1 Set Point: 5% v/v
Repeatability: < ± 0.1% v/v
Linearity: & < ± 0.2% v/v
Response Time: < 10 seconds
Sensor Cartridge Life Expectancy: ?36 months under typical application conditions
Operating Temperature: 0°C to +40°C (32°F to 104°F)
Operating Humidity: 15 – 90% rH
Operating Pressure: 70 – 110kPa
Effect of Position: No effect in typical application
Calibration Gas: Oxygen (O2 )
Challenge Gas (Bump Test): Air mixture
Warm Up Time: & < 30 minutes

    Please Note a complete Midas System consists of;

    • Midas or Midas transmitter and cartridge kit
    • Sensor cell (if combo kit not purchased)
    • Sample and exhaust tubing
    • End of line filters

    Click Below for the Datasheet for this sensor:

    Click Below for Relative Product Information about the Midas Gas Detector:
