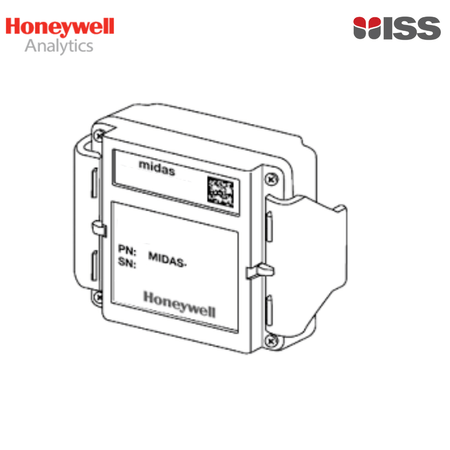

Midas Sensor Cartridges: BCl3, H2Cl2Si, HBr, HCl

Midas Sensor Cartridges: BCl3, H2Cl2Si, HBr, HCl

MIDAS-E-HCL
  • £197.60


Midas Sensor Cartridges: BCl3, H2Cl2Si, HBr, HCl

Cartridges are required for all of the transmitters sensors at time of purchase and for replacement. Several Midas cartridges can be configured via the transmitter to read a number of different gases based on a common chemical family. Actual details for the sensor detection range are included in the sensor cartridge data sheet and the Midas technical manual. Midas sensor cartridges can be ordered as part of a kit with the universal Midas transmitter, or as a replacement part with either standard or extended warranty cover.

Gas Measured: Hydrogen Chloride (HCI)
Part No.: MIDAS-S-HCL 1 year extended warranty MIDAS-E-HCL 2 year extended warranty
Sensor Technology: 3 electrode electrochemical cell
Measuring Range (ppm): HCI 0 – 8ppm
Minimum Alarm 1 Set Point: 1ppm
Repeatability: < ± 10% of measured value
Linearity: & < ± 20% of measured value
Response Time: t62.5 < 30 seconds based on 3 min. exposure t90 < 140 seconds based on 3 min. exposure
Sensor Cartridge Life Expectancy: ? 24 months under typical application conditions
Operating Temperature: 0°C to +40°C (32°F to 104°F)
Operating Humidity: 20 – 75% rH
Operating Pressure: 90 – 110kPa
Effect of Position: No effect in typical application
Calibration Gas: Hydrogen Chloride (4-6ppm HCI)
Challenge Gas (Bump Test): Hydrogen Chloride (4-6ppm HCI)
Warm Up Time: & < 20 minutes



    Please Note a complete Midas System consists of;

    • Midas or Midas transmitter and cartridge kit
    • Sensor cell (if combo kit not purchased)
    • Sample and exhaust tubing
    • End of line filters

    Click Below for the Datasheet for this sensor:

    Click Below for Relative Product Information about the Midas Gas Detector:
