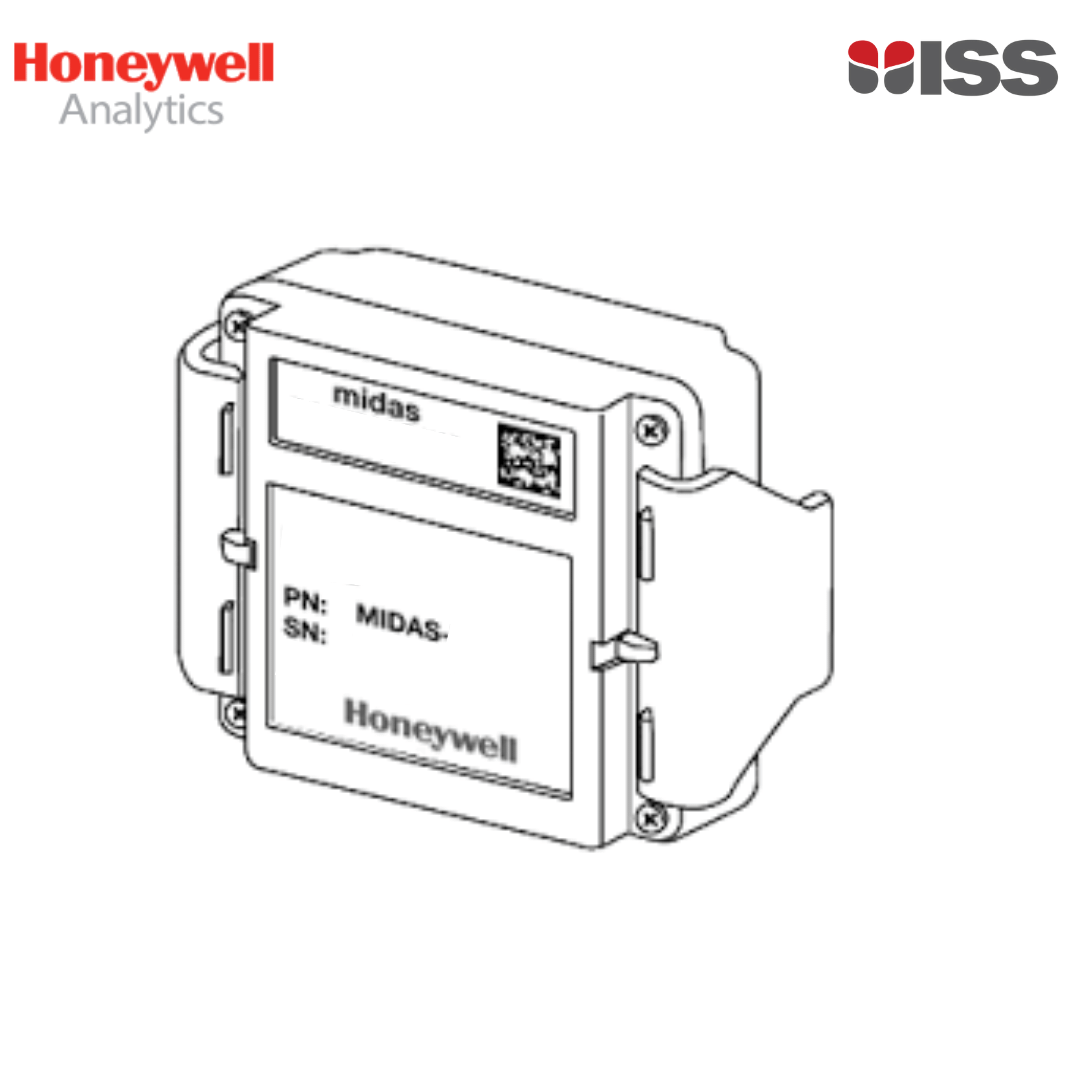

    Midas Sensor Cartridges: BCl3, H2Cl2Si, HBr, HCl

    Midas Sensor Cartridges: BCl3, H2Cl2Si, HBr, HCl

    MIDAS-S-HCL
    • £160.29


    Midas Sensor Cartridges: BCl3, H2Cl2Si, HBr, HCl

    Cartridges are required for all of the transmitters sensors at time of purchase and for replacement. Several Midas cartridges can be configured via the transmitter to read a number of different gases based on a common chemical family. Actual details for the sensor detection range are included in the sensor cartridge data sheet and the Midas technical manual. Midas sensor cartridges can be ordered as part of a kit with the universal Midas transmitter, or as a replacement part with either standard or extended warranty cover.

    Gas Measured: Hydrogen Chloride (HCI)
    Part No.: MIDAS-S-HCL 1 year extended warranty MIDAS-E-HCL 2 year extended warranty
    Sensor Technology: 3 electrode electrochemical cell
    Measuring Range (ppm): HCI 0 – 8ppm
    Minimum Alarm 1 Set Point: 1ppm
    Repeatability: < ± 10% of measured value
    Linearity: & < ± 20% of measured value
    Response Time: t62.5 < 30 seconds based on 3 min. exposure t90 < 140 seconds based on 3 min. exposure
    Sensor Cartridge Life Expectancy: ? 24 months under typical application conditions
    Operating Temperature: 0°C to +40°C (32°F to 104°F)
    Operating Humidity: 20 – 75% rH
    Operating Pressure: 90 – 110kPa
    Effect of Position: No effect in typical application
    Calibration Gas: Hydrogen Chloride (4-6ppm HCI)
    Challenge Gas (Bump Test): Hydrogen Chloride (4-6ppm HCI)
    Warm Up Time: & < 20 minutes

      Please Note a complete Midas System consists of;

      • Midas or Midas transmitter and cartridge kit
      • Sensor cell (if combo kit not purchased)
      • Sample and exhaust tubing
      • End of line filters
