Description

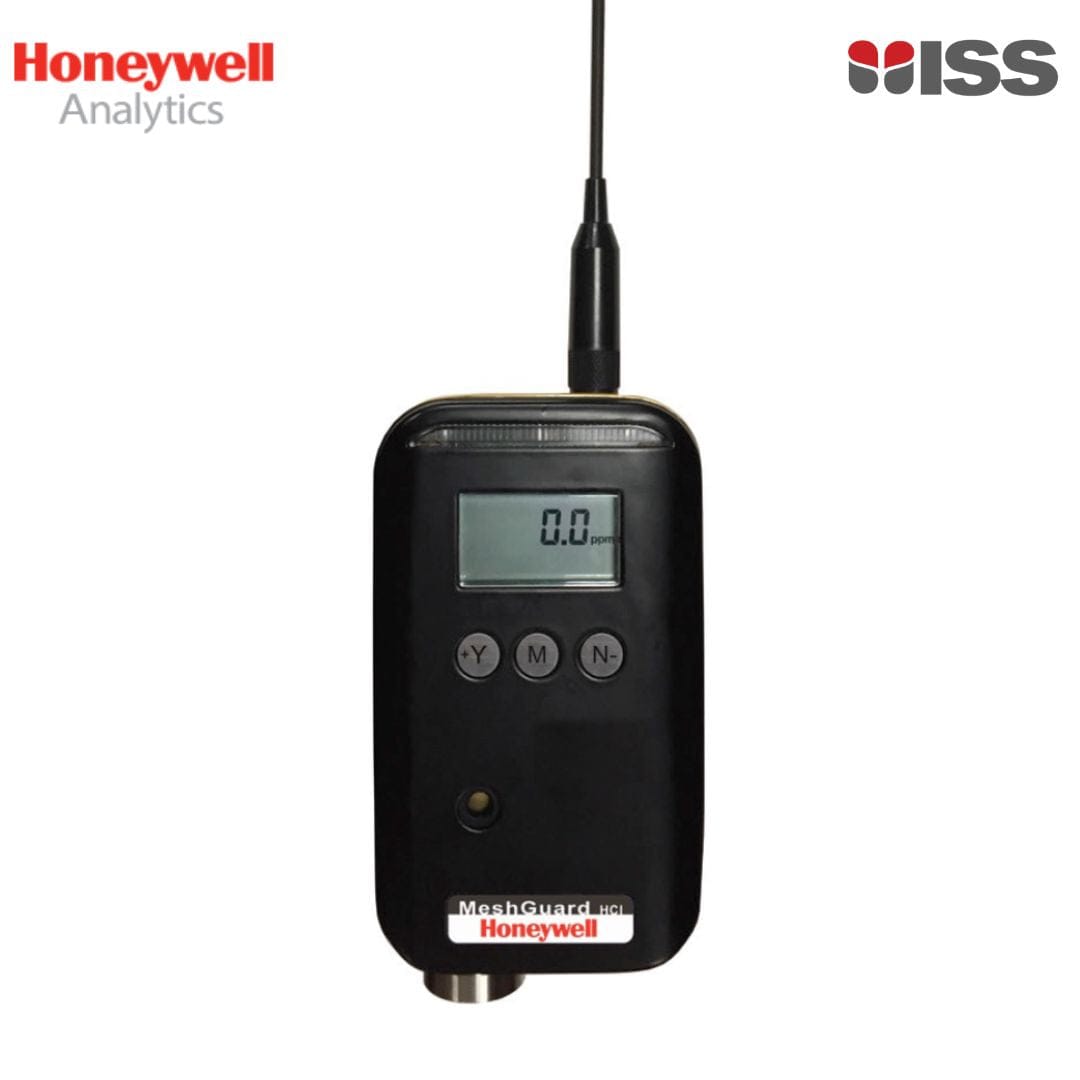

MeshGuard Stainless Steel is a networkable wireless gas monitoring solution designed for quick deployment in areas where low cost/high ROI solutions are required.
MeshGuard Stainless Steel is a rugged, battery-powered toxic gas detector integrated with a Mesh radio modem. Designed for use in harsh and hazardous environments, MeshGuard systems are ideal for temporary area monitoring projects lasting from 1 week to 6 months.
*Note: All Kits will not include disposable batteries. The batteries need to be ordered separately and will be shipped separately as dangerous goods. MeshGuard LEL units require a PowerPak external battery for operation. MeshGuard Stainless Steel units do not include mounting hardware
Please use following part numbers to order the batteries as required:
P/N: 500-0111-000-01: Battery, Cell, Li/SO Cl2, D-Size, 3.6V, each or P/N: 500-0111-000-05: Battery, Cell, Li/SO Cl2, D-Size, 3.6V, pack of 5
Note for existing MeshGuard users:
New radios have been implemented into the 2010 MeshGuard product line. If you want to add additional radio-enabled equipment to an existing MeshGuard network that was purchased prior to October 13, 2010, please contact ISS.
MeshGuard Detectors include:
- MeshGuard Detector
- Maintenance Tool
- Calibration Gas Adapter
- Calibration Certificate
ISS offer the full range of Honeywell Analytics MeshGuard Gas Detectors including spares and accessories. Select your product (click on required product) to order online or contact us.
Part No: |
Description |
D01-S001-111 | MeshGuard Stainless Steel Detector w/o Battery, Hydrogen Sulfide H₂S Range: 0 to 100 ppm, 0.1 ppm Resolution |
D01-S002-111 | MeshGuard Stainless Steel Detector w/o Battery, Hydrogen Sulfide H₂S Range: 0 to 1000 ppm, 1ppm Resolution |
D01-S00G-111 | MeshGuard Stainless Steel Detector w/o Battery, Flammables LEL Range: 1 to 100% LEL, 1% Resolution |
D01-S00J-111 | MeshGuard Stainless Steel Detector w/o Battery, Flammables LEL IR Range: 1 to 100% LEL, 1% Resolution |
D01-S003-111 | MeshGuard Stainless Steel Detector w/o Battery, Carbon Monoxide CO Range: 0 to 2000 ppm, 1 ppm Resolution |
D01-S00P-111 | MeshGuard Stainless Steel Detector w/o Battery, Carbon Dioxide CO₂ IR* Range: 0 to 5% vol., 0.01% Resolution |
D01-S00Q-111 | MeshGuard Stainless Steel Detector w/o Battery, Carbon Dioxide CO₂ IR* Range: 0 to 100% vol., 0.1% Resolution |
D01-S00D-111 | MeshGuard Stainless Steel Detector w/o Battery, O₂ Oxygen Range: 0 to 25% vol., 0.1% Resolution |
D01-S00A-111 | MeshGuard Stainless Steel Detector w/o Battery, Ammonia NH₃ Range: 0 to 100 ppm, 1ppm Resolution |
D01-S008-111 | MeshGuard Stainless Steel Detector w/o Battery, Chlorine Cl₂ Range: 0 to 10 ppm, 0.1ppm Resolution |
D01-S005-111 | MeshGuard Stainless Steel Detector w/o Battery, Sulfur Dioxide SO₂ Range: 0 to 20 ppm, 0.1ppm Resolution |
D01-S006-111 | MeshGuard Stainless Steel Detector w/o Battery, Sulfur Dioxide SO₂ Range: 0 to 100 ppm, 1ppm Resolution |
D01-S009-111 | MeshGuard Stainless Steel Detector w/o Battery, Hydrogen Cyanide HCN Range: 0 to 50 ppm, 0.5ppm Resolution |
D01-S00H-111 | MeshGuard Stainless Steel Detector w/o Battery, Nitrogen Oxide NO Range: 0 to 250 ppm, 0.5ppm Resolution |
D01-S00B-111 | MeshGuard Stainless Steel Detector w/o Battery, Phosphine PH₃ Range: 0 to 20 ppm, 0.1ppm Resolution |
D01-S00C-111 | MeshGuard Stainless Steel Detector w/o Battery, Hydrogen chloride HCl Range: 0 to 15 ppm, 1ppm Resolution |
D01-S00K-111 | MeshGuard Stainless Steel Detector w/o Battery, Ethylene oxide ETO-A Range: 0 to 100 ppm, 1ppm Resolution |
D01-S00M-111 | MeshGuard Stainless Steel Detector w/o Battery, Ethylene oxide ETO-B Range: 0 to 10 ppm, 0.1ppm Resolution |
D01-S00N-111 | MeshGuard Stainless Steel Detector w/o Battery, Ethylene oxide ETO-C Range: 0 to 500 ppm, 10ppm Resolution |
D01-S007-111 | MeshGuard Stainless Steel Detector w/o Battery, Nitrogen Dioxide NO₂ Range: 0 to 20 ppm, 0.1ppm Resolution |
D01-S00E-111 | MeshGuard Stainless Steel Detector w/o Battery, Hydrogen fluoride HF Range: 0 to 10 ppm, 0.1ppm Resolution |
