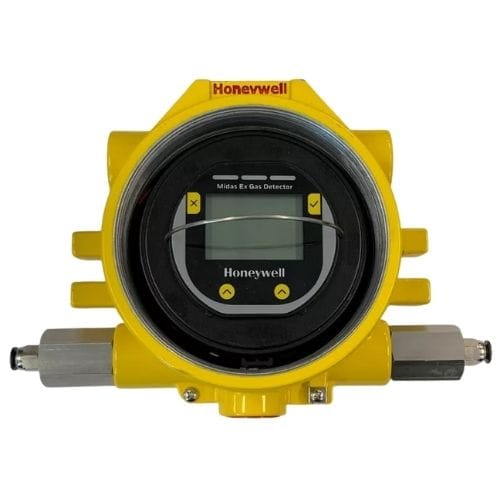

MDX-T-006 Midas® EX Transmitter Extractive Single-Point Gas Detection System.

The Midas® EX, developed by Honeywell, is an extractive single-point gas detection sampling system that is certified explosion-proof (IECEx & ATEX), which offers both reliability and improved safety, and features factory-calibrated sensors that provide accurate readings and measurements. This gas detector can draw samples locally or remotely to a sensor cartridge inside the detector's chassis.

The Midas® EX can detect a variety of gases. Asphyxiant, toxic, flammable, pyrophoric, corrosive and oxidizer (including oxygen) gas sensor cartridges are available.

This single-point gas detection system is designed to be simple and efficient with easy installation and with a 4-button keypad, which allows for easy set-up, review, operation and configuration. The Midas® EX can be easily mounted on a wall or pipe, and its small and compact design makes it suitable for complex environments that are tight for space. Included also is a clear and visible graphics display screen, providing instant alerts, gas readings and alarms as well as gas concentration, failure and status information via backlit LCD and LEDs.

The Midas® EX features flexible power and communication capabilities. This includes 3 on-board relays: 0-21 mA analogue output, Power over Ethernet (PoE) and MODBUS/TCP outputs.

Ideal for use in applications such as:

• Semiconductor processing
• Light industrial manufacturing
• University laboratories
• Aerospace
• Wastewater

FEATURES

Relay Remote Control

The Midas® EX is controlled remotely with a TCP/IP-based MODBUS command. This is the ability to collect and control gas values from the remote locations for relay output.

No Calibration Required

Reduced need for constant gas testing as the sensors are factory calibrated.

Easy Installation

The Midas® EX can be easily mounted on a wall, and its compact design makes it suitable for complex environments.

PoE Protocol

The Midas® EX utilises the innovative PoE (Power over Ethernet) protocol, having a single Ethernet connection for all power, control and communication requirements.

Clear Visibility

The Midas® EX gas detection system features instrument icons and a clear, large graphics display screen, along with instant alerts for gas readings or alarm levels. It displays gas concentration, alarm, failure and status information via backlit LCD and LEDs.

Explosion-Proof Certification

The Midas® EX is IECEx and ATEX certified.

Sampling System

This gas detector can draw from a sample locally or from a remote point to a sensor cartridge inside the detector's chassis.
