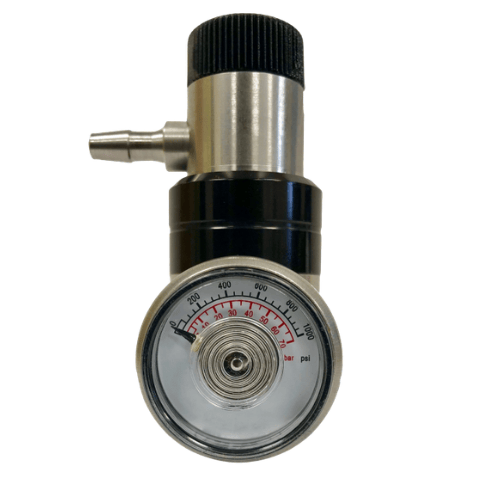

ISS Variflow Regulator SS for 2AL, 8AL, 10AL (803) P/N:C014991
Regular price
£788.30 GBP
Contact ISS
ISS Variflow Regulator SS for 2AL, 8AL, 10AL (803)
Performance
| Inlet | Outlet | Variflow | Stages | Max Inlet Pressure | Max Outlet Pressure |
| 803 | C 10 |
4.8mm (3/16”) Barb |
0.5 Lit/Mn to 5.0 Lit/Mn | 2 |
70 Bar (1000 Psi) |
4.1 Bar (60 Psi) |
Materials of Construction
| Body | Piston | Piston Seal | Seat | Weight |
| 803 | Brass Forged /SS | Brass Forged /SS | Viton | Teflon | 0.26kg (0.57lb) |
Gas Suitability
| Non-Reactive | H2S & SO2 | NO & NO2 | CI2 , HCL, NH3, PH3,SiH4 & HCN |
| 803 | Suitable | Suitable | Suitable | Suitable |
Cylinder Compatibility
| 2AL | 5ELR | 6D | 6DM | 8AL | 10AL | 65ALR |
| 803 | ✓ | ✓ | ✓ | ✓ | ✓ |
