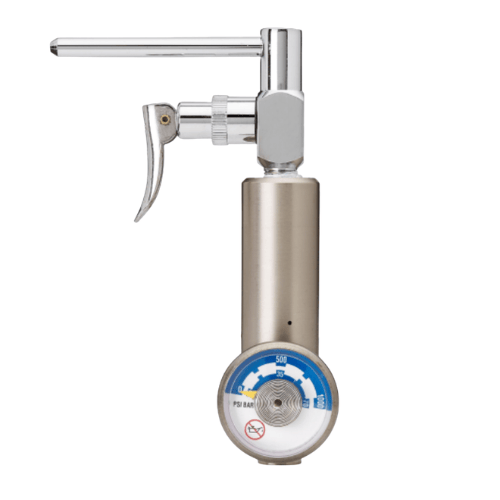

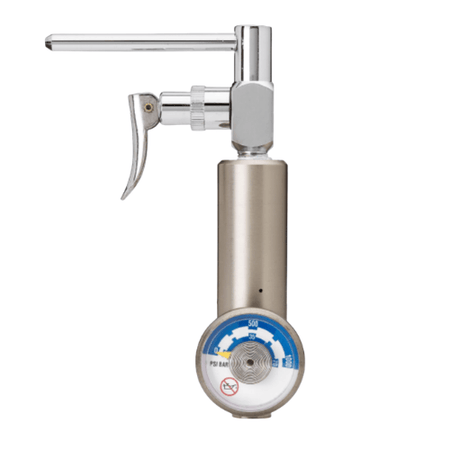

ISS Gas Trigger Valve 4210 @ 0.5LPM P/N:C003182
Regular price
£240.33 GBP
Contact ISS
ISS Gas Trigger Valve 4210 @ 0.5LPM
Performance
| Inlet | Outlet | Fixed Flow | Stages | Max Inlet Pressure | Gauge |
| TRIGGER 4210 | C10 (5/8" - 18 UNF) |
4.8mm (3/16”) Tubing |
0.2 to 6.0 LPM | 1 |
70 Bar (1000 Psi) |
0-70 Bar (0-1000 Psi) |
Materials of Construction
| Body | Piston Seal | Seat | Weight |
| TRIGGER 4210 | Ni-Brass | Viton | Teflon |
0.35kg (0.7lb) |
Gas Suitability
| Non-Reactive | H2S & SO2 | NO & NO2 | CI2 , HCL, NH3, PH3,SiH4 & HCN |
| TRIGGER 4210 | Suitable | Suitable | Not recommended | Not recommended |
Cylinder Compatibility
| 2AL | 6D | 6DM | 8AL | 10AL |
| TRIGGER 4210 | ✓ | ✓ | ✓ | ✓ | ✓ |
