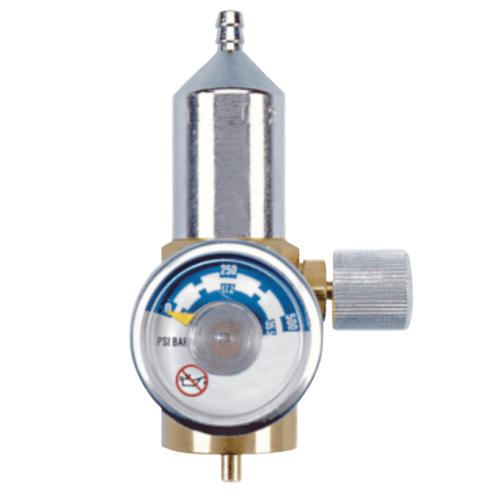

ISS Gas Fixed Flow Regulator 713 @ 3LPM P/N:C003101
Regular price
£144.41 GBP
Contact ISS
ISS Gas Regulator 713 @ 3LPM
Performance
| Inlet | Outlet | Preset Fixed Flow | Stages | Max Inlet Pressure | Max Outlet Pressure | Gauge/Knob | |
| 713 | CGA 600 | 4.8mm (3/16”) Barb | 0.2 to 6.0 LPM | 1 | 35 Bar (500 Psi) |
4.5 Bar (65 Psi) |
0-70 Bar (0-1000 Psi) |
Materials of construction
| Body | Piston | Piston Seal | Seat | Weight | |
| 713 | Ni-Brass | Brass | Viton | Teflon |
0.28kg (0.6lb) |
Gas Suitability
| Non-Reactive | H2S & SO2 | NO & NO2 | CI2 , HCL, NH3, PH3, SiH4 & HCN | |
| 713 | Suitable | Not recommended | Not recommended | Not recommended |
