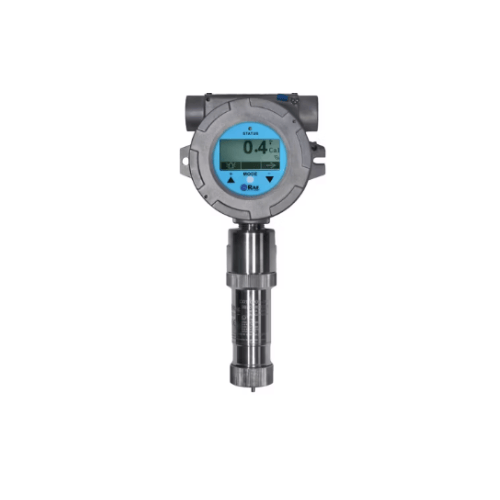

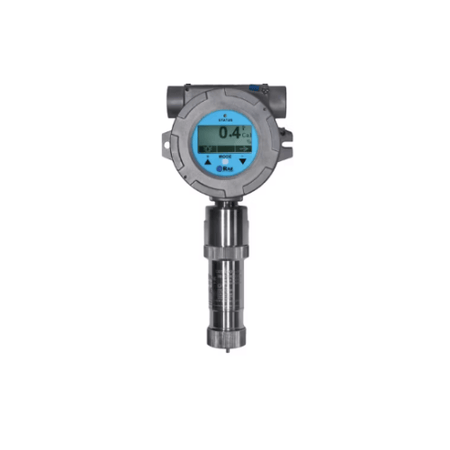

H-D03-0002-000 Honeywell Kit, RAEGuard 2 PID (Photoionisation Detector), ATEX/IECEx, 0.1 – 1000 ppm isobutylene equivalent. Diffusion model.

P/N: H-D03-0002-000

Honeywell Kit, RAEGuard 2 PID (Photoionisation Detector)

Standard: ATEX/IECEx

Range: 0.1–1000 ppm

Isobutylene equivalent.

Diffusion model.

All kits include: RAEGuard 2 fixed head. DigiPID sensor module, magnetic key, hex service tool, 5 pack of external water trap filters, user manual.

Product Overview:

RAEGuard 2 PID is a fixed photoionisation detector (PID) that measures a wide range of volatile organic compounds (VOCs). Performing calibration and maintenance on this detector is a simple process as the digital PID module can be easily removed in unsafe and hazardous locations.

The RAEGuard 2 PID includes features such as a graphic display, a local sound alarm and LED light status indicator. The detector also contains a magnetic key interface which allows it to be calibrated and operational parameters adjusted with the explosion-proof enclosures in place. Additionally, external alarms or process controls can be triggered by configuring Low, High and Fault relays.

Features:

• Quicker response time
• Reduced maintenance cost due to the easy removal of the sensor module in hazardous locations
• Large UV lamp and better sealing allow for better sensitivity, quicker responses and better resolution, meaning there's no false alarms

Quick Specs:

• Digital Smart Sensor Technology
• Detection range 0.1 to 1000 ppm
• Operates on 10 to 28 VDC and provides an analogue (4-20mA) three-wire signal output, and RS-485 Modbus digital signal
• Fault and alarm conditions are indicated by the graphic display and LED light status indicator
