FS20X-212-23-3 Honeywell FS20X-211-23-3 DUAL IR/UV FLAME DETECTOR Copper-Free Aluminium Encl. with (2) M25 entries, FM, cFM, ATEX, IECEx for Class I, Zone 1 with FSX-A014 Optional HART Module for FS20X Detectors Factory installed.

SKU: FS20X-212-23-3
£3,461.00 GBP

Contact ISS

Need help or have a query? Ask ISS.
Contact us:
e: sales@isscomplete
t:+44 28 37 539 950

P/N: FS20X-212-23-3

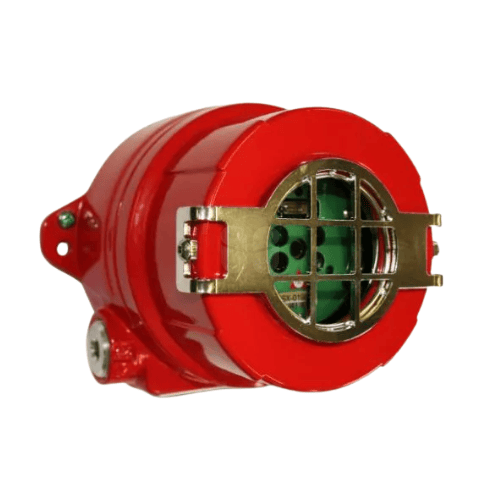

Honeywell FS20X-211-23-3 DUAL IR/UV Flame Detector Copper-Free Aluminium enclosure with (2) M25 entries, FM, cFM, ATEX, IECEx for Class I, Zone 1 with FSX-A014 Optional HART Module for FS20X Detectors Factory installed.

The FS20X is a Multi-Spectrum and UC/Dual IR/VIS Flame Detector with a proven UV solar-blind sensor. The FS20X reacts to a wider range of temperatures and with much longer detection range compared to conventional UV/IR detectors, and it's response is quicker and free of false alarms. The device contains dual microprocessors that provide a high level of fail-safe operation combined with quick and reliable performance. In addition, it also exhibits a wide detection range of 200 feet and a solar blind 90 degree cone of vision, which has a volumetric coverage that is greater than most UV/IR detectors.

Features:

  • Visible sensor optimum false alarm rejection
  • Selectable detection sensitives
  • Patented WideBand IR™ Infrared combined with Ultraviolet
  • Detection range greater than 200 feet fir the detection of a 1 square-foot Heptane reference fire
  • Patented Electronic Frequency Analysis
  • Solar blind 90° full 100% cone-of-vision
  • Dual microprocessors for a more reliable performance
  • Includes a real-time clock for accurate time dating of events
  • Event log - up to 200 events with date and time stamp
  • Built-in RS-485 ModBus Communication
  • Built-in non-isolated 4-20 mA analogue output
  • Alarm, fault and fire verification relays
  • Automatic Optical Path and Electronic Self Test
  • Widest operating temperature range
  • Low power consumption
  • High RFI and EMI immunity
  • Patented Electronics Module for components with plug-in terminations for easy field installation
  • Can detect hydrocarbon and non-hydrocarbon fuel fires in all environmental conditions
  • Arc welding immunity
  • False alarm rejections for all environmental conditions
  • Minimal maintenance for simple and smooth operation

Quick Specs:

  • Operating voltage: 24 VDC nominal (18-32 VDC) - regulated
  • Sensitivity: Very high, high, medium and low
