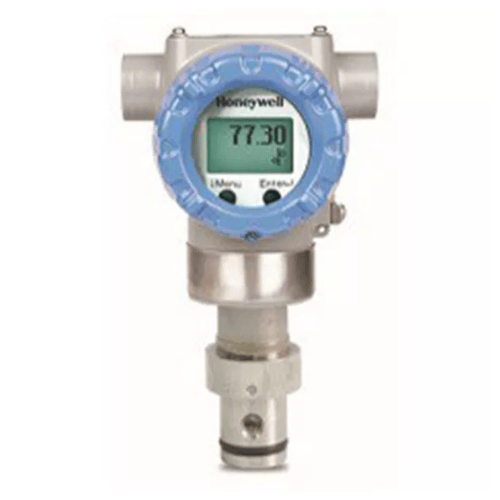

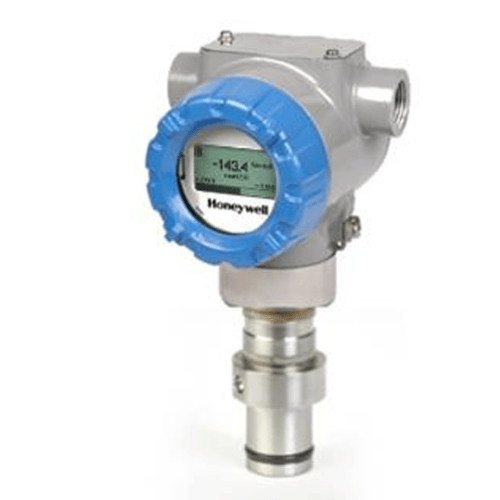

Honeywell Flush Mount Pressure Transmitters - SmartLine ST700

Smartline ST700 Flush Mount Pressure Transmitter for direct insertion in processes with the use of a 1” sleeve, welded into the process line. It is primarily used for pressure measurement in the head box of pulp and paper plants.

The Flush Mount Pressure Transmitter, is available in ranges from 0-1 to 0-100 psig and can be installed in a variety of hazardous locations. The flush mounting capability eliminates the possibility of clogging while the insertion design makes the transmitter change out rapid and trouble-free.

The cost-effective transmitter provides:

• Reference accuracy = 0.065%
• 100 ms response time
• Stability = +/-0.025% per year

Part of the SmartLine® family of products, the STG73P is a gauge pressure transmitter with a flush mounted diaphragm. Installed using a 1” sleeve welded to the process piping the diaphragm face may be situated flush with the process piping wall. Typically applied to applications such as head boxes in pulp and paper mills, flush mounting eliminates the possibility of clogging.

In addition, the transmitter mounting facilitates rapid and trouble free replacement. The SmartLine family is also fully tested and compliant with Experion® PKS providing the highest level of compatibility assurance and integration capabilities.

SmartLine easily meets the most demanding application needs for pressure measurement applications.
