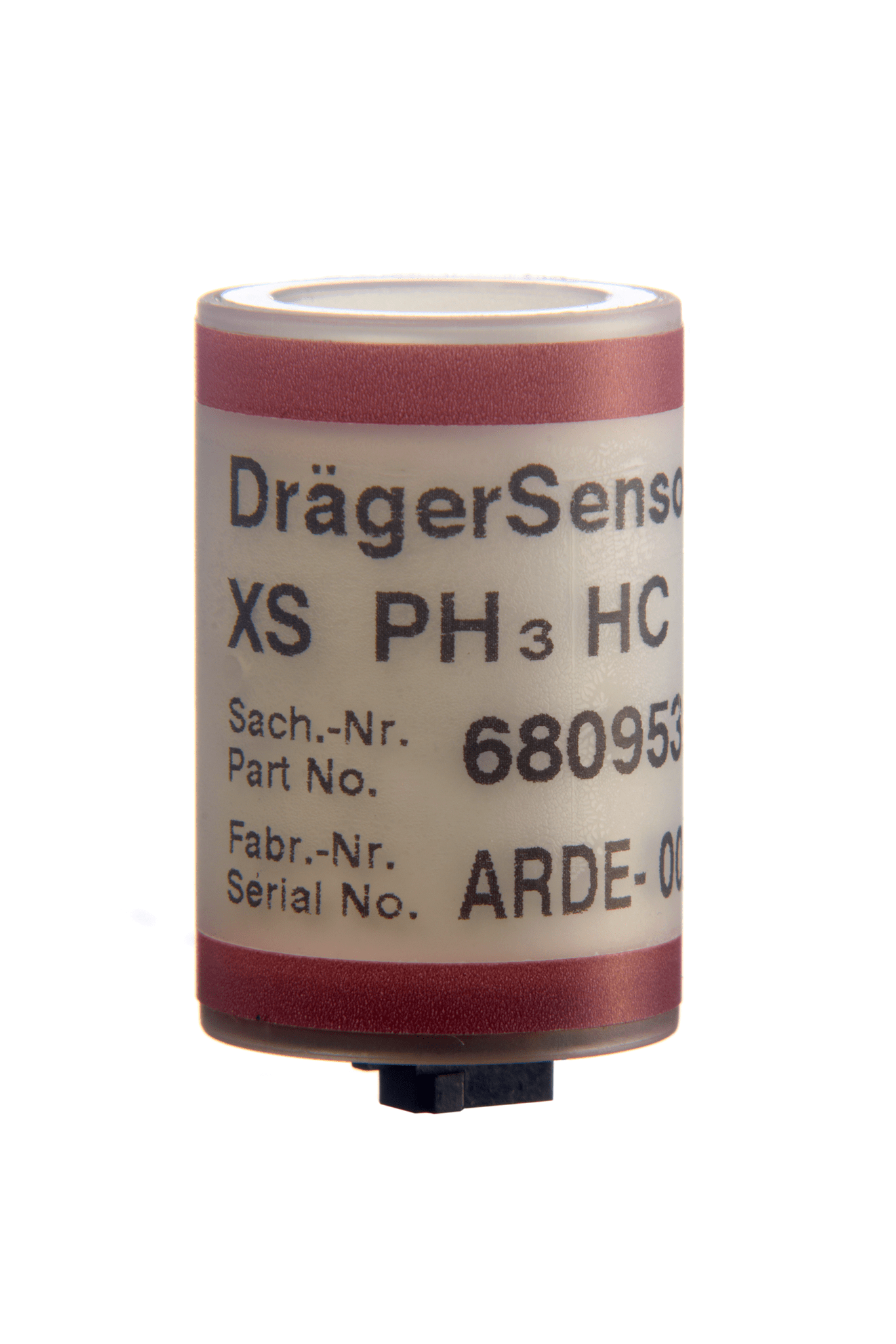

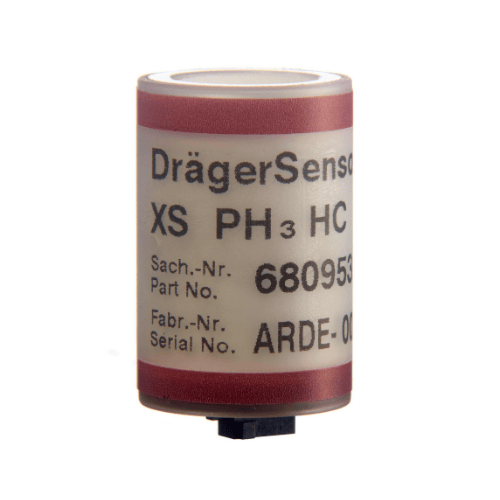

Dräger XS Electrochemical Sensor - Phosphine HC PH3 - HC 0-1000 ppm
|Measuring||Phosphine HC PH3 - HC|
|Calibration Interval||6 Months|
|Warranty||1 Year Warranty|
|Suitable For||X-am 7000|
Click To Download Sensor Data Sheet
Dräger XS Electrochemical Sensor
Dräger develop the sensors using their own engineering knowledge. In this way, we can assure their quality and we know the measurements are accurate. This allows them to be fully utilized in combination with our full line of in-house developed Dräger gas detectors. Their engineers have even developed DrägerSensors XS to deal with the challenges of highly reactive gases such as H2O2, HF, HCl or hydrazine, for example.
Multiple sensor options
With the DrägerSensors XS, you can safely monitor industrial and special gases. In addition to DrägerSensors XS H2S, CO, O2, Dräger also offers sensors for hydrides, amines and organic vapours. The sensitivity data of more than 12 different gases and vapours are stored in the XS OV sensor, so that multiple gas hazards can be measured by a single sensor.
Low operating costs
Due to the excellent reliability and high measurement quality of DrägerSensors XS, Dräger can ensure a service life of up to five years. Also, because they are so stable, longer calibration intervals are possible. These excellent properties reduce your operating costs considerably.
Simple to use due to Smart Technology
The DrägerSensors XS are so-called intelligent sensors that are equipped with an integrated EEPROM (Electrically Erasable Programmable Read-Only Memory). All relevant sensor data, such as temperature compensation, measuring range, calibration interval and gas type are stored in this memory module. This information is automatically processed when the sensor is inserted into a Dräger X-am® 7000. The plug & play function allows sensors to be swapped between devices, without, for example, having to recalibrate them.
For information on the Dräger X-am 7000 range please click below
