Dräger

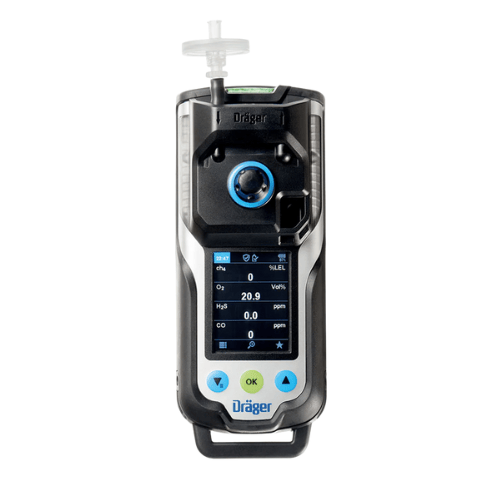

Drager X am 8000 (5 Sensor/7 Gas detection - configurable)

SKU: 8325800

Configuration Required -Contact ISS

Email +44 28 37539 950

This product requires configuration.

Contact us to discuss your needs and for the best price on this device(s).

The Dräger X-am® 8000 simultaneously detects up to seven toxic or flammable gases/vapours and oxygen, operating in either pump or diffusion mode.

Equipped optionally with a high-performance pump, it supports hose lengths up to 45 meters and allows easy switching between modes via a pump adapter.

This durable device features a large colour display and charges inductively. Its advanced signalling system and assistance functions enhance process reliability. Certified for use in Ex zone 0, temperature class T4, the X-am 8000 integrates seamlessly with the Dräger X-dock automatic calibration station. It supports up to five Dräger Sensors covering seven gases, including PID, infrared, CatEx, and electrochemical types.

The device measures 179 x 77 x 42 mm, weighs approximately 495 g depending on sensors, and boasts IP68 protection.

Optional features comprise additional sensors, internal pump, inductive charging cradle, RFID transponder, and customisable calibrations.

At least one sensor must be chosen

Clearance measurement was never this easy and convenient: the Dräger X-am 8000 measures up to seven toxic as well as flammable gases, vapours and oxygen all at once, either in pump or diffusion mode. Innovative signalling design and handy assistant functions ensure complete safety throughout the process.

Comes with:

  • Rechargeable Lithium Ion Battery
  • Inductive charging unit
  • Power supply
  • Shoulder strap
  • Instruction for use (DE, EN, FR, ES, PT, IT, NL, RU, ZH, JA)
  • Event and data logger
  • Manufacturer Certificate and Calibration Certificate

Contact our sales team for information on the complete sensor combination options.

Features:
  • Ergonomic mobile phone design
  • Flexible sensor exchange
  • Durable Sensor Technology
  • Robust and watertight
  • External pump available for checks into confined spaces e.g. tanks, shafts, etc. (Not Included)
  • Area monitoring available through X-zone 5500 (Not Included)
  • Optimum solutions for function or bump tests and calibrations
  • Flexible power supply
**Please Note: As standard, this product requires calibration and necessary sensor warm-up prior to dispatch. As such, delivery times may vary, and next day delivery may not be guaranteed.

With reference to the standard BS EN 60079-29-1, it is strongly recommended that this portable gas detection device is regularly functionally (Bump) tested.


All information is provided by the manufacturer and, while every effort is made to keep it current, we recommend confirming that details suit your needs.

As a Drager Sales Channel partner, ISS can offer a range of support services: incl. training, calibrations and services (we are a Dräger Authorised Service Partner (ASP).

ISS are a leading provider of gas detection and calibration services in Ireland and the UK.

Sensor information below:

See the datasheet below for more information.

Sensors Measuring range Resolution Part No.
Cat‑Ex 125 PR 0–100 % LEL 1 % LEL 6812950
0-100 vol% CH4
Cat‑Ex 125 PR Gas 0–100 % LEL 1 % LEL 6813080
0-100 vol% CH4
0-50,000 ppm CH4L 10ppm, Detection limit 50ppm
CatEx H2 100 0–100 % LEL 2 % LEL (10 ppm for gas h2L for leak search) 3729050
0–100 vol% 1 vol%
Dual IR Ex / CO2 ES 0–100 % LEL 1 % LEL 6851880
0–100 vol% Methane, Propane, Ethene, n‑Butane 0.1 vol% CH4
0-5 vol% CO2 0.01 vol% CO2 or 50 ppm CO2
Dual IR Ex / CO2 HC 0–100 % LEL 1 % LEL 6800276
0–100 vol% Methane, Propane, Ethene, n‑Butane 0.1 vol% CH4
0-100 vol% CO2 0.1 vol%
IR Ex ES 0–100 % LEL 1 % LEL 6851881
0–100 vol% Methane, Propane, Ethene, n‑Butane 0.1 vol% CH4
IR CO2 ES 0-5 vol% CO2 0.01 vol% CO2 or 50 ppm CO2 6851882
PID LC ppb (10.6 eV) 0.05–10 ppm Isobutene
0–5 ppm Benzene 		depending on gas value, starting with 10 ppb 6813500
PID HC (10.6 eV) 0–2,000 ppm Isobutene
0–1,000 ppm Benzene 		depending on gas value, starting with 0.1 ppm 6813475
XXS O2 0–25 vol% 0.1 vol% 6810881
XXS O2 PR 0–30 vol% 0.1 vol% 6800530
XXS O2 100 0–100 vol% 0.5 vol% 6812385
XXS O2 / H2S LC 0-25 vol% O2, 100 ppm H2S 0.1 vol% 0.1 ppm 6814137
XXS CO LC 2 0–2,000 ppm 1 ppm 6813210
XXS CO HC 0–10,000 ppm 5 ppm 6812010
XXS CO / H2 compensated 0–2,000 ppm CO 2 ppm 6811950
XXS H2S LC 0–200 ppm 0.1 ppm 6811525
XXS H2S HC 0–1,000 ppm 2 ppm 6812015
XXS CO LC / H2S LC 0–2,000 ppm CO/ 1 ppm CO 6813280
0-100 ppm H2S 0.1 ppm H2S
XXS CO LC / O2 0–2,000 ppm CO/ 1 ppm CO 6813275
0–25 vol% 0.1 vol% O2
XXS NO 0–200 ppm 0.1 ppm 6811545
XXS NO2 0–50 ppm 0.1 ppm 6810884
XXS NO2 LC 0–50 ppm 0.02 ppm 6812600
XXS SO2 0–100 ppm 0.1 ppm 6810885
XXS PH3 0–20 ppm 0.01 ppm 6810886
XXS PH3 HC 0–2,000 ppm 1 ppm 6812020
XXS HCN 0–50 ppm 0.1 ppm 6810887
XXS HCN PC 0–50 ppm 0.5 ppm 6813165
XXS NH3 0–300 ppm 1 ppm 6810888
XXS CO2 0–5 vol% 0.1 vol% 6810889
XXS Cl2 0–20 ppm 0.05 ppm 6810890
XXS H2 0–2,000 ppm 5 ppm 6812370
XXS H2 HC 0–4 vol% 0.01 vol% 6812025
XXS OV 0–200 ppm 0.5 ppm 6811530
XXS OV‑A 0–200 ppm 1 ppm 6811535
XXS Amine 0–100 ppm 1 ppm 6812545
XXS Odorant 0–40 ppm 0.5 ppm 6812535
XXS COCl2 0–10 ppm 0.01 ppm 6812005
XXS Ozone 0–10 ppm 0.01 ppm 6811540
