Drager X am 5800 P/N: 3703850
Configuration Required -Contact ISS
The Drager X am 5800 multi-gas detector is:
- Durable and robust
- Small and lightweight
- Can measure up to 6 gases
- Equipped with a shock-resistant CatEx

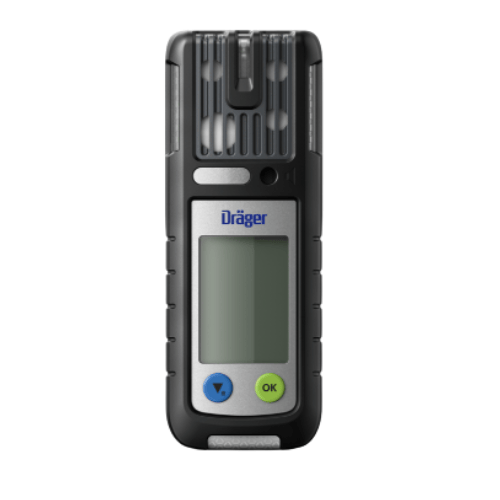

The Drager X am 5800 is multi-gas detector that can measure up to 6 gases. It has been specially developed for personal protection and can reliably measure toxic gases, oxygen and combustible gases and vapours. The X am 5800 provides a high level of safety with low operating costs. The detector includes powerful sensors. The new CatEx sensor provides many advantages, including resistance against shocks and the measurement of flammable vapours.
Comfortable asset management
The Drager X am 5800 enables you to efficiently manage your fleet of equipment in daily use. Perform fast tests by using the automatic test station X-dock with low gas consumption to save operating costs and time. A pure mechanical bump test station can also be used.
Tailor-made gas monitoring
The Drager X am 5800 is small and lightweight, making it comfortable to wear and easy to use. It also includes large buttons for easy use when wearing gloves. Important information, such as gas readings, alarms and time, are clearly shown on the display screen. The detector also features a green D-light which indicates that the device is ready for use. Additionally, the language-free icon based user interface of the X am 5800 is simple to use and learn. The detector’s oxygen channel includes four alarm thresholds – real pre-alarms and main alarms for falling and rising concentrations. The Drager X am 5800 has been tested according to protection class IP 68 and has been approved for use in Ex zone 0. The detector also features a manually triggered panic alarm and an optional motionless alarm.
All information is provided by the manufacturer and, while every effort is made to keep it current, we recommend confirming that details suit your needs.
As a Drager Sales Channel partner, ISS can offer a range of support services: incl. training, calibrations and services (we are a Dräger Authorised Service Partner (ASP).
ISS are a leading provider of gas detection and calibration services in Ireland and the UK.
Please contact ISS to confirm your requirements and for price.
Sensor information below:
See the datasheet below for more information.
| Dräger Sensors | Sample gases | Measuring range | Resolution | Part No. |
| CatEx SR (Shock Resistant) (factory setting: methane, other measuring gases selectable) | Methane, further gases adjustable (propane, pentane, nonane, hydrogen and many more) | 0 – 100% LEL |
1% LEL, 0.01% LEL for Methane with selection ch4L (Methane, leak search) |
6851900 |
| methane | 0 – 5 vol% | 0.1 vol% | ||
| carbon dioxide | 0 - 5 vol% CO2 |
50 ppm CO2 0.01 vol% CO2 |
||
|
XXS O2 (4 alarm thresholds) |
oxygen | 0 – 25 vol% | 0.1 vol% | 6810881 |
|
XXS O2 PR (4 alarm thresholds, increased robustness) |
oxygen | 0 – 30 vol% | 0.1 vol% | 6800530 |
| XXS CO LC | carbon monoxide | 0 – 2,000 ppm | 1 ppm | 6813210 |
| XXS H2S LC | hydrogen sulphide | 0 – 200 ppm | 0.1 ppm | 6811525 |
| XXS SO2 (option with KX filter) | sulphur dioxide | 0 – 100 ppm | 0.1 ppm | 6810885 |
| XXS NO2 | nitrogen dioxide | 0 – 50 ppm | 0.1 ppm | 6810884 |
| XXS NO2 LC | nitrogen dioxide | 0 – 50 ppm | 0.05 ppm | 6812600 |
| XXS H2S-LC/CO-LC | hydrogen sulphide carbon monoxide |
0 to 100 ppm 0 to 2,000 ppm |
0.1 ppm 1 ppm |
6813280 |
| XXS O2/CO-LC | oxygen carbon monoxide |
0 to 25 vol% 0 to 2,000 ppm |
0.1 vol% 1 ppm |
6813275 |
| XXS O2/H2S-LC | oxygen hydrogen sulphide |
0 to 25 vol% 0 to 100 ppm |
0.1 vol% 0.1 ppm |
6814137 |
| XXS CO H2-CP (with compensation for hydrogen, sensor must be hosted on the Dual XXS sensor slot) | carbon monoxide | 0 to 2,000 ppm | 2 ppm | 6811950 |
| XXS O2 100 | oxygen | 0 to 100 vol% | 0.5 vol% | 6812385 |
| XXS CO HC | carbon monoxide | 0 to 10,000 ppm | 5 ppm | 6812010 |
| XXS H2S HC | hydrogen sulphide | 0 to 1,000 ppm | 2 ppm | 6812015 |
| XXS PH3 | phosphine, other compounds available | 0 to 20 ppm | 0.01 ppm | 6810886 |
| XXS PH3 HC | phosphine | 0 to 2,000 ppm | 1 ppm | 6812020 |
| XXS HCN | hydrogen cyanide | 0 to 50 ppm | 0.1 ppm | 6810887 |
| XXS HCN PC | hydrogen cyanide | 0 to 50 ppm | 0.5 ppm | 6813165 |
| XXS NH3 | ammonia | 0 to 300 ppm | 1 ppm | 6810888 |
| XXS CO2 | carbon dioxide | 0 to 5 vol% | 0.1 vol% | 6810889 |
| XXS OV | ethylene oxide, other compounds available | 0 – 200 ppm EO | 0.5 ppm EO | 6811530 |
| XXS OV-A | ethylene oxide, other compounds available | 0 – 200 ppm EO | 1 ppm EO | 6811535 |
| XXS NO | nitric oxide | 0 to 200 ppm | 0.1 ppm | 6811545 |
| XXS H2 | hydrogen | 0 to 2,000 ppm | 5 ppm | 6812370 |
| XXS H2 HC | hydrogen | 0 to 4 vol% | 0.01 vol% | 6812025 |
| XXS Odorant | tetrahydro- thiophene, other compounds available | 0 – 40 ppm | 0.5 ppm | 6812535 |
| XXS Amine | methylamine, other compounds available | 0 – 100 ppm | 1 ppm | 6812545 |
| XXS Cl2 | chlorine, other compounds available | 0 – 20 ppm | 0.05 ppm | 6810890 |
| XXS O3 (Ozone) | ozone | 0 to 10 ppm | 0.01 ppm | 6811540 |
| XXS COCl2 | phosgene | 0 to 10 ppm | 0.01 ppm | 6812005 |
CatEx (SR): T90 response time < 15 s (specified for methane/propane measuring gas), other response times: see DrägerSensor® & gas detection device handbook
