Dräger X-act 5000 kit

3362607
  • £1,905.85

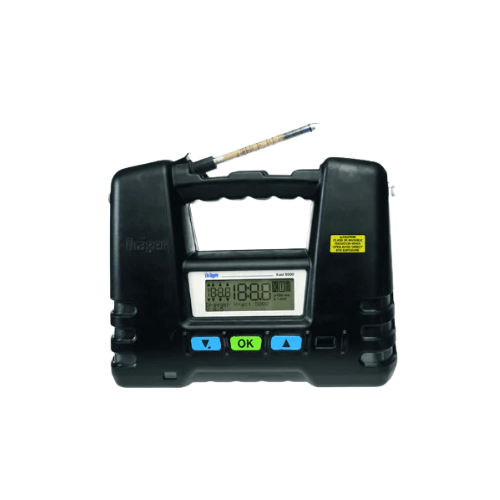

Dräger X-act 5000 kit

This kit is complete with Rechargeable NiMH T4 power supply and Universal Mains charger.

The Drager X-act 5000 is an automatic tube pump which is an all-in-one solution which is designed for measurements with Drager short-term tubes and sampling tubes and systems.  There is a high degree of reliability and ease of operation which complement the measurement and sampling of gases, vapours and aerosols.

One of the benefits of the Drager X-act 5000 is that only one device is needed for measuring and sampling.  This automatic tube is suitable for both the Drager short-term tubes and the sampling tubes and systems.  The house of the device is robust and supports the use of the pump to perform the daily measuring tasks.  The components of the pump are corrosion resistance and the pump is additionally equipped with a user-replaceable filter which traps sulphur trioxide aerosols.  This ensures the pump is protected for up to two years.

The display of the instrument is backlit to allow use of the pump under poor lighting conditions.  All Drager short-term tubes and accessories can be used with the Drager X-act 5000.  The IS approved Drager X-act 5000 can be used for confined space applications and in explosive gas atmospheres.

New Pump Concept

The Drager X-act 5000 is based on a completely new pump concept and its key principle is the ability to provide the required flow characteristics of the Drager short-term tubes.  It also provides the option to be used with sampling tubes and systems requiring constant flow.  This new concept reduces the average measurement time of the short-term tubes in case of a high number of strokes.  The internal pump is also designed to use extension hoses up to a length of 30 meters (98 ft).

Simplicity of Operation

The Drager X-act 5000 directs air to be measured through the appropriate Drager Tubes.  This can be comfortably carried with one hand or can be used through the shoulder strap which is easily operated, even when wearing protective gloves.  Efficient operation of the device is made simple through the menu structure and just a few button presses.  Repetitive operating modes can be set using a password-protected menu.

Automatic Transfer of Measurement Parameters

All relevant measurement parameters are contained on a barcode printed on the label on the backside of the Drager short-term tube box.
By sliding the barcode over the barcode reader of the pump automatically transfers the name of the substance to be measured, the number of strokes, and the measuring range to the display.  The steps needed to carry out the measurement are simplified with the Drager X-act 5000 and the risk of making an error is reduced to a minimum.

Measurement in Technical Gases

Short-term tubes from Drager are calibrated for measurements in ambient air.  The properties of the technical gas must be taken into consideration if the user wishes to evaluate measurements in technical gases.  Technical gases have a different viscosity than ambient air; therefore the flow of the pump must be set accordingly.  The Drager X-act 5000 will automatically be adjusted to the required flow parameter and the measurement result can be read directly.

Direct Settings for Sampling

Depending on the sampling tubes or systems, the required parameters for the test can be set directly, without the need for an external flow meter.  The Drager X-act 5000 automatically adjusts the flow rate. After setting the sampling time the pump can immediately be started. At the end of the measurement the pump will stop automatically. The set data, the elapsed time and the pumped volume will be indicated on the display.

For More Information on the X-act 5000 click below:
