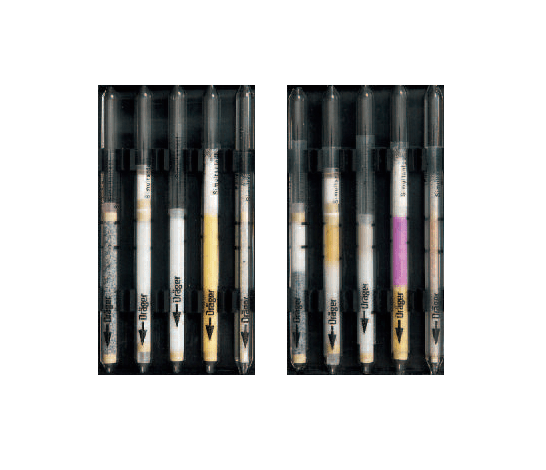

Dräger Simultaneous Test Set 2 for inorganic fumes
Application Range:
Standard Measuring Range and Colour Change
| Dräger-Tubes in Simultaneous Test-set 2 | 1. Scale mark (ppm) | 2. Scale mark (ppm) |
|
1. Sulfur Dioxide: - Blue to white |
- | 10 |
|
2. Chlorine: - White to orange |
- | 2.5 |
|
3. Hydrogen Sulfide: - White to pale brown |
10 | 50 |
|
4. Phosphine: - Yellow to red |
- | 0.3 |
|
5. Phosgene: - White to red |
- | 0.5 |
| Number of strokes n: | 10 |
| Time for measurement: | approx. 40s |
Ambient Operating Conditions:
| Temperature: | 10 to 30 °C |
| Absolute Humidity: | 5 to 15 mg H2O / L |
(Semi Quantitative measurements are also possible outside this range. Water aerosols may result in minus errors.)
Attention:
The Simultaneous Test Set was developed for the semi-quantitative measurement of fumes and decomposition gases. It is used to estimate and limit risks by obtaining information about health risks or possible intoxication hazards in the area of a fire. The Simultaneous Test Set cannot be used to determine the risk of explosion. A negative result with the Simultaneous Test Set does not exclude the presence of other hazardous gases.
See datasheet in download below.
