Dräger Miscellaneous Simultaneous test set 1
Contact ISS

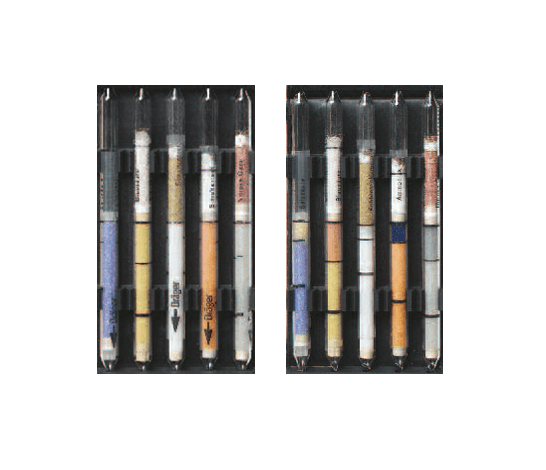

Dräger Simultaneous Test Set for inorganic fumes 1
Application Range:
Standard Measuring Range and Colour Change
| Dräger-Tubes in Simultaneous Test-set 1 | 1. Scale mark (ppm) | 2. Scale mark (ppm) |
|
1. Acid gas: - Blue to yellow |
5 | 25 |
|
2. Hydrocyanic acid: - Yellow to red |
10 | 50 |
|
3. Carbon Monoxide: - White to brown green |
30 | 150 |
|
4. Basic Gas: - Yellow to blue |
50 | 250 |
|
5. Nitrous Gas: - Pale grey to blue grey |
5 | 25 |
| Number of strokes n: | 10 |
| Time for measurement: | approx. 40s |
Ambient Operating Conditions:
| Temperature: | 10 to 30 °C |
| Absolute Humidity: | 5 to 15 mg H2O / L |
(Semi Quantitative measurements are also possible outside this range. Water aerosols may result in minus errors.)
Attention:
The Simultaneous Test Set was developed for the semi-quantitative measurement of fumes and decomposition gases. It is used to estimate and limit risks by obtaining information about health risks or possible intoxication hazards in the area of a fire. The Simultaneous Test Set cannot be used to determine the risk of explosion. A negative result with the Simultaneous Test Set does not exclude the presence of other hazardous gases.
See datasheet in download below.
