Description

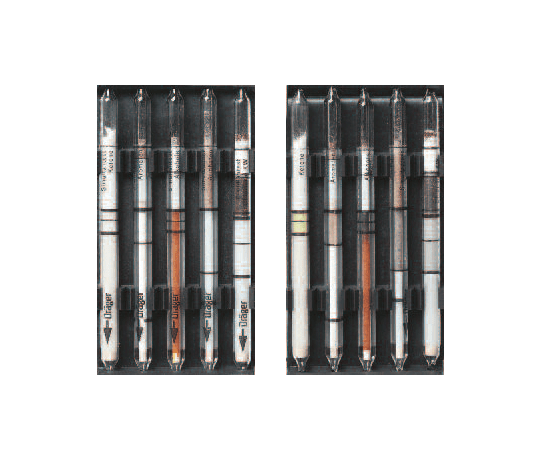

Dräger Simultaneous Test Set 3 for organic vapours
Application Range:
Standard Measuring Range and Colour Change
Dräger-Tubes in Simultaneous Test-set 3 | 1. Scale mark (ppm) | 2. Scale mark (ppm) |
1. Ketones: - Pale yellow to dark yellow |
1,000 | 5,000 |
2. Aromatics: - White to brown |
100 | 500 |
3. Alcohols: - White to brown |
50 | 100 |
4. Aliphatics: - White to brown |
50 | 100 |
5. Chlorinated hydrocarbons: - Yellow white to grey blue |
50 | 100 |
Number of strokes n: | 10 |
Time for measurement: | approx. 40s |
Ambient Operating Conditions:
Temperature: | 10 to 30 °C |
Absolute Humidity: | 5 to 15 mg H2O / L |
(The ranges given for temperature and humidity apply to calibrations with the original substances. Semi-quantitative measurements are also possible outside this range.)
Attention:
The Simultaneous Test Set was developed for the semi-quantitative measurement of fumes and decomposition gases. It is used to estimate and limit risks by obtaining information about health risks or possible intoxication hazards in the area of a fire. The Simultaneous Test Set cannot be used to determine the risk of explosion. A negative result with the Simultaneous Test Set does not exclude the presence of other hazardous gases.
