Description

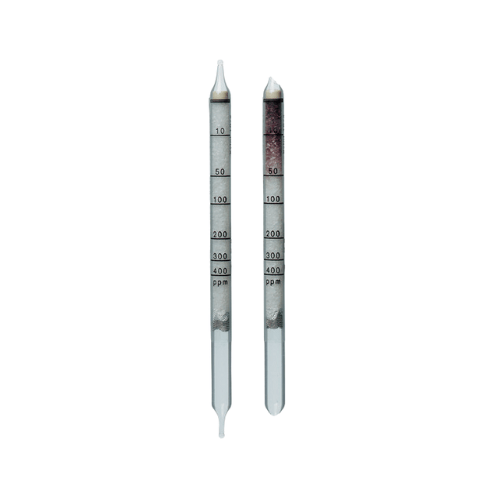

Dräger Tubes For Short Term Measurements: Xylene 10/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Xylene 10/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
| Part no | Dräger Tube | Substance | Measurement Range |
| 6733161 | Xylene 10/a | p-tert-Butyltoluene | 1 to 100 ppm |
| Naphthalene | Qualitative | ||
| Xylene (all isomers) | 10 to 1000 ppm |
Application Range:
| Standard Measuring Range: | 10 to 400 ppm |
| Number of Strokes n: | 5 |
| Time for Measurement: | approx. 1 min. |
| Standard Deviation: | ± 20 to 30 % |
| Colour Change: | white ä red brown |
Ambient Operating Conditions:
| Temperature: | 0 to 40 °C |
| Absolute Humidity | 3 to 15 mg H2O / L |
Reaction Principle:
C6H4(CH3)2 + HCHO + H2SO4 ~> quinoid reaction product
Cross Sensitivity:
Styrene, vinyl acetate, toluene, ethyl benzene and acetaldehyde are indicated, but with different sensitivities. No interference by: 500 ppm octane 200 ppm methanol 400 ppm ethyl acetate.
