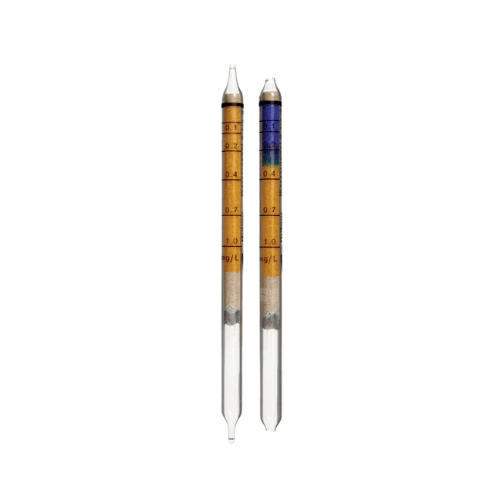

Dräger Tubes For Short Term Measurements: Water Vapor 0.1/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Water Vapor 0.1/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
Standard Measuring Range: | 0.1 to 1.0 mg/L |
Number of Strokes n: | 3 |
Time for Measurement: | approx. 1.5 min |
Standard Deviation: | ± 15 to 20 % |
Colour Change: | yellow to blue |
Ambient Operating Conditions:
Temperature: | 0 to 30 °C |
Absolute Humidity | - |
Reaction Principle:
H2O + Mg(CIO4)2 ~> blue reaction product
Cross Sensitivity:
Generally basic substances cause plus errors and acidic substances cause minus errors. No interference by: 1,200 ppm nitrogen dioxide 6,000 ppm sulfur dioxide 2,000 ppm ethanol 2,000 ppm acetone.
