Dräger Tube -Vinyl chloride 0.5/b

DrägerSKU: 8101721

Sale price£74.99

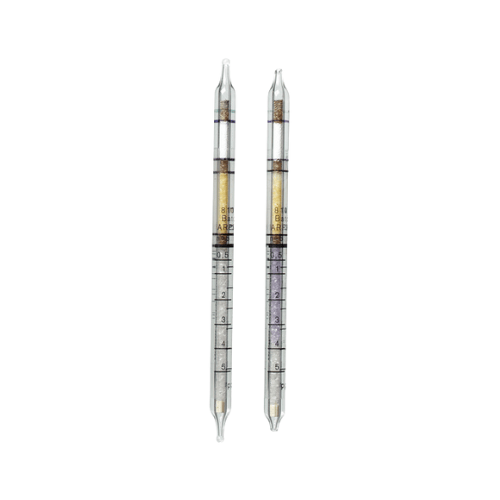

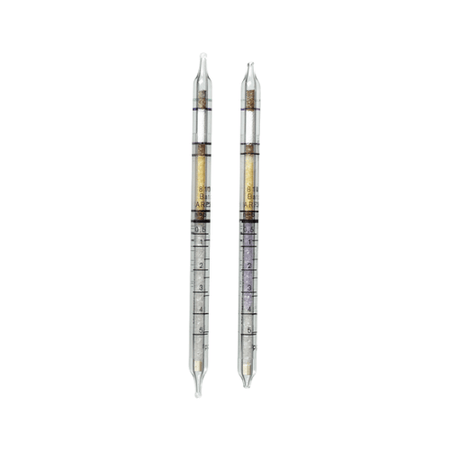

Dräger Tubes For Short Term Measurements: Vinyl Chloride 0.5/b

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Vinyl Chloride 0.5/b).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

Part no Dräger Tube Substance Measurement Range
8101731 Toluene 100/a Cumene 100 to 1800 ppm
Toluene 100 to 1800 ppm
Xylene (all isomers) 100 to 1800 ppm

Application Range:

Standard Measuring Range: 5 to 30 ppm / 0.5 to 5 ppm
Number of Strokes n: 1
Time for Measurement: approx. 30 s / approx. 2.5 min
Standard Deviation: ± 15 to 20 %
Colour Change: white to violet

Ambient Operating Conditions:

Temperature: 10 to 30 °C
Absolute Humidity max. 20 mg H2O / L

Reaction Principle:

a) CH2=CHCI + CrVI ~> Cl2 b) Cl2 + dimethyl naphtidine ~> violet reaction product

Cross Sensitivity:

100 ppm hydrogen chloride, 20 ppm chlorine, 10 ppm carbon tetrachloride, 10 ppm chloroform or 5 ppm perchloroethylene are not indicated. Trichloroethylene and chlorobenzene are indicated with less sensitivity. 1.1-dichloroethylene is indicated with almost identical sensitivity. Vapors of organic solvents consume part of the oxidation layer so that the resultant reading is somewhat lower. Examples: a reading of 0.5 ppm vinyl chloride will occur by 5 ppm vinyl chloride + 100 ppm butadiene or 5 ppm vinyl chloride + 10 ppm ethylene.

For more information on Dräger-Tubes click the image below.

To view our range of Dräger pumps please click below.
