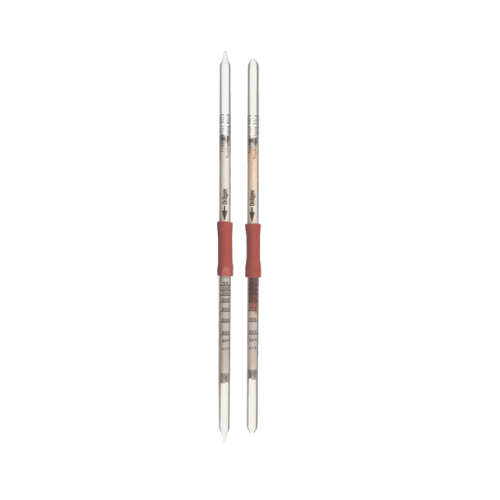

Dräger Tubes For Short Term Measurements: Trichloroethane 50/d
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Trichloroethane 50/d).
The tubes come in a pack of 5 tubes and have a shelf life of 2 years.
| Part no | Dräger Tube | Substance | Measurement Range |
| CH21101 | Trichloroethane 50/d (5) | Methyl Chloroform | 10 to 600 ppm |
| Trichloroethane | 50 to 600 ppm |
Application Range:
| Standard Measuring Range: | 50 to 600 ppm |
| Number of Strokes n: | 2 + 3 desorption strokes in clean air |
| Time for Measurement: | approx. 1.5 min |
| Standard Deviation: | ± 10 to 15 % |
| Colour Change: | grey to brown red |
Ambient Operating Conditions:
| Temperature: | 15 to 40 °C |
| Absolute Humidity | 5 to 15 mg H2O / L |
Reaction Principle:
a) 1,1,1-trichloroethane + IO3/H2S2O7 ~> Cl2 b) Cl2+ o-tolidine ~> brown red reaction product
Cross Sensitivity:
Other chlorinated hydrocarbons are indicated, but with different sensitivities. In the presence of aromatic hydrocarbons the indication is too low (e.g. 200 ppm 1,1,1-trichloroethane and 200 ppm toluene, the reading amounts to 1/4 only, i.e. 50 ppm)..
