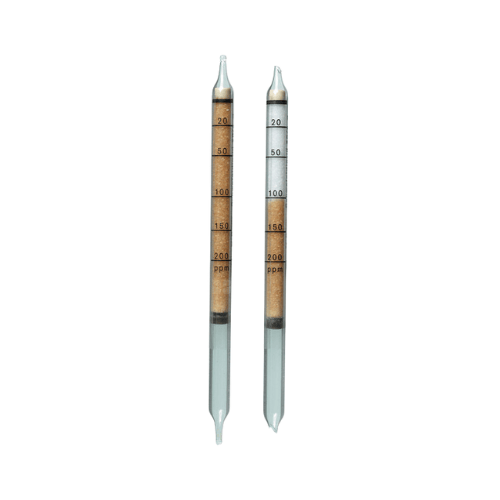

Dräger Tube -Sulphur Dioxide 20/a

DrägerSKU: CH24201

Sale price£77.79


Dräger Tubes For Short Term Measurements: Sulfur Dioxide 20/a

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Sulfur Dioxide 20/a).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

Application Range:

Standard Measuring Range: 20 to 200 ppm
Number of Strokes n: 10
Time for Measurement: approx. 3 min
Standard Deviation: ± 10 to 15 %
Colour Change: brown yellow to white

Ambient Operating Conditions:

Temperature: 0 to 40 °C
Absolute Humidity < 30 mg H2O / L

Reaction Principle:

SO2 + I2 + 2 H2O ~> H2SO4 + 2 HI

Cross Sensitivity:

Hydrogen sulfide is indicated, with the same sensitivity. It is impossible to measure sulfur dioxide in the presence of hydrogen sulfide. Nitrogen dioxide will shorten the reading.

    Extension of the Measuring Range

    Using n = 1+3 desorption strokes, multiply the reading by 10; the range of measurement is 200 - 2,000 ppm. The desorption strokes are to be taken in clean air (i.e. free of sulfur dioxide) immediately following the single pump stroke..

    For more information on Dräger-Tubes click the image below.

    To view our range of Dräger pumps please click below.
