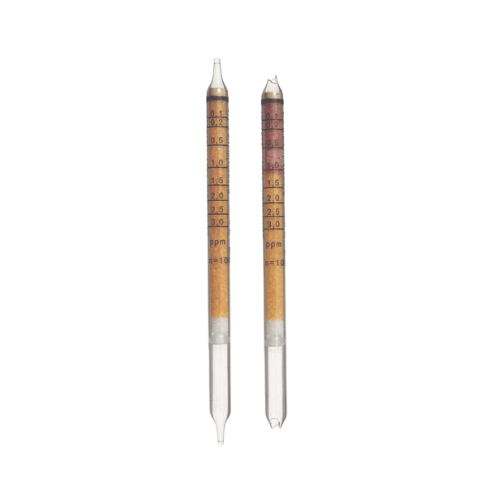

Dräger Tube -Sulphur Dioxide 0.1/a

Dräger Tube -Sulphur Dioxide 0.1/a

6727101
  • £65.32


Dräger Tubes For Short Term Measurements: Do not use in areas subject to explosion hazards. Tubes get hot. During and shortly after measurement, do not touch the first tube near the black pyrolysis layer.

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Do not use in areas subject to explosion hazards. Tubes get hot. During and shortly after measurement, do not touch the first tube near the black pyrolysis layer.).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.



Part no Dräger Tube Substance Measurement Range
6727101 Sulphur Dioxide 0.1/a Sulphur Dioxide 0.1 to 3 ppm
    Thionyl Chloride 1 to 30 ppm





Application Range:

Standard Measuring Range: 0.1 to 3 ppm
Number of Strokes n: 100
Time for Measurement: approx. 20 min
Standard Deviation: ± 10 to 15 %
Colour Change: yellow to orange



Ambient Operating Conditions:

Temperature: 10 to 30 °C
Absolute Humidity 3 to 15 mg H2O / L



Reaction Principle:

SO2 + Na2[HgCI4] + methyl red ~> Na2[Hg(SO3)2] + 4 HCI

Cross Sensitivity:

It is impossible to measure sulfur dioxide in the presence of other acidic gases..

For more information on Dräger-Tubes click the image below.

To view our range of Dräger pumps please click below.
