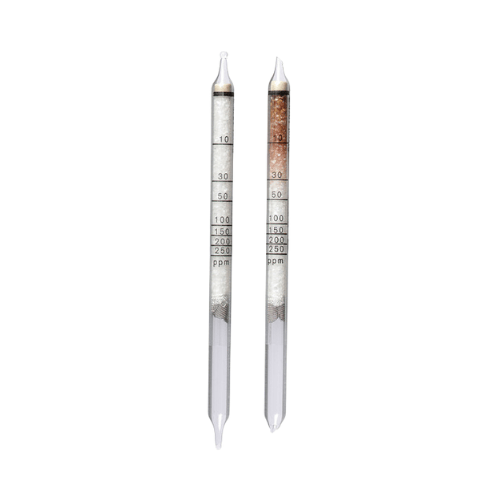

Dräger Tube -Styrene 10/b

DrägerSKU: 6733141

Sale price£76.77


Dräger Tubes For Short Term Measurements: Styrene 10/b

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Styrene 10/b).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

Part no Dräger Tube Substance Measurement Range
6733141 Styrene 10/b Isopropenyl Benzene 10 to 50 ppm
alpha-Methylstyrene 10 to 50 ppm
Methylstyrene 10 to 100 ppm
Styrene 10 to 250 ppm

Application Range:

Standard Measuring Range: 10 to 250 ppm
Number of Strokes n: 20
Time for Measurement: approx. 3 min
Standard Deviation: ± 15 to 20 %
Colour Change: white to red brown

Ambient Operating Conditions:

Temperature: 0 to 40 °C
Absolute Humidity 3 to 15 mg H2O / L

Reaction Principle:

Styrene + HCHO to red brown reaction product

Cross Sensitivity:

Other organic compounds, which react with the formaldehyde/ sulfuric acid indicating system (e. g. xylene, toluene, butadiene and ethyl benzene) affect the indication. It is impossible to measure monostyrene in the presence of these compounds. No interference by: 200 ppm methanol 500 ppm octane 400 ppm ethyl acetate.
