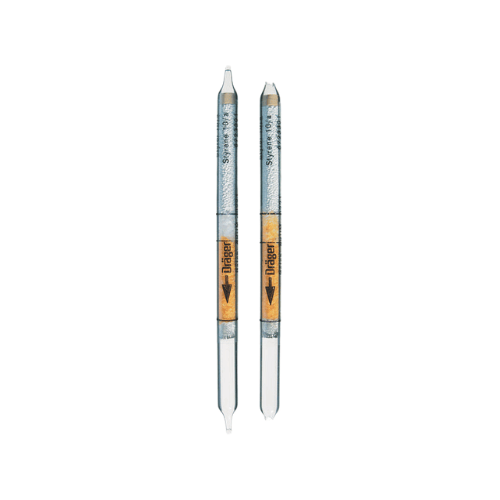

Dräger Tubes For Short Term Measurements: Styrene 10/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Styrene 10/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
| Part no | Dräger Tube | Substance | Measurement Range |
| 6723301 | Styrene 10/a | 1 to 40 ppm | Diethyl Benzene |
| 10 to 200 ppm | Styrene |
Application Range:
| Standard Measuring Range: | 10 to 200 ppm |
| Number of Strokes n: | max. 15 |
| Time for Measurement: | max. 3 min |
| Standard Deviation: | ± 15 to 20 % |
| Colour Change: | white to pale yellow |
Ambient Operating Conditions:
| Temperature: | 15 to 40 °C |
| Absolute Humidity | < 15 mg H2O / L |
Reaction Principle:
C6H5-CH=CH2 + H2SO4 ~> pale yellow reaction product
Cross Sensitivity:
Other organic compounds which tend toward polymerization (e. g. buta diene) are indicated, but with different sensitivities. It is impossible to measure monostyrene in the presence of these compounds..
