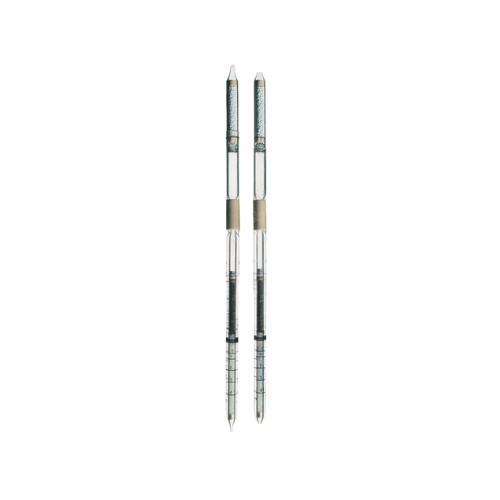

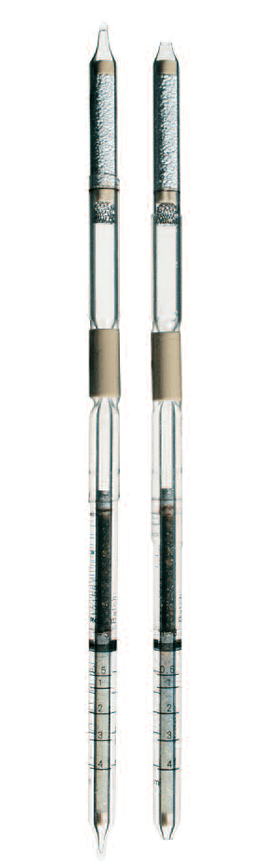

Dräger Tube -Perchloroethylene 0.1/a
8101551
Dräger Tubes For Short Term Measurements: Perchloroethylene 0.1/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Perchloroethylene 0.1/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
| Part no | Dräger Tube | Substance | Measurement Range |
| 8101551 | Perchloroethylene 0.1/a | Benzyl Chloride | 0.2 to 8 ppm |
| Chloroethane | 5 to 50 ppm | ||
| 1,2 Dichloroethane | 5 to50 ppm | ||
| Ethyl Chloride | 5 to 50 ppm | ||
| Methyl Allyl Chloride | 1 to 40 ppm | ||
| Perchloroethylene | 0.1 to 4 ppm | ||
| 1,1,2,2- Tetrachloroethane | Qualitative | ||
| Trichloroethylene | 0.1 to 4 ppm |
Application Range:
| Standard Measuring Range: | 0.5 to 4 ppm / 0.1 to 1 ppm |
| Number of Strokes n: | 3 |
| Time for Measurement: | approx. 3 min / approx. 9 min |
| Standard Deviation: | ± 15 to 20 % |
| Colour Change: | light grey to blue |
Ambient Operating Conditions:
| Temperature: | 15 to 30 °C |
| Absolute Humidity | max. 30 mg H2O / L |
Reaction Principle:
a) CCI2=CCI2 + MnO4€“ ~> CI2 b) CI2 + diphenylbenzidine ~> blue reaction product At higher concentrations there may be created a reddish area at the beginning of the indicating layer.
Cross Sensitivity:
Other chlorinated hydrocarbons, free halogens and hydrogen halides are also indicated. Petroleum hydrocarbon vapors result in a shortened reading once they exceed the following concentrations: 40 ppm with 9 strokes or 160 ppm with 3 strokes..
